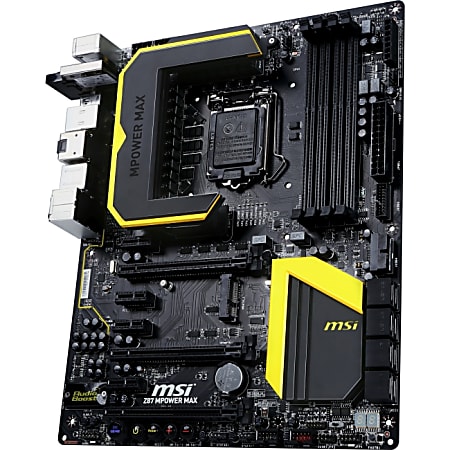

Sign up for MSI Z87 MPOWER MAX AC Desktop Motherboard - Intel Z87 Express Chipset - Socket H3 LGA-1150
1 / 1
$291.99/each
Description
The MSI Z87 MPOWER MAX AC motherboard is equipped with all the necessary features to make sure you get the most out of your system. From the Enhanced PWM and Thermal Design that give you the best stability to all the easy features that ensure that you don't have to perform a lot of tricks to get great stability in your quest for performance.
Specifications
Product Specifications
| Item # | 134848 |
| Manufacturer # | Z87 MPOWER MAX AC |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC1150 |
| BIOS Features | DMI support, MSI ClickBIOS 4 |
| Bluetooth | Yes |
| brand name | MSI |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.) |
| Buttons & Keys | Reset; OC Genie; GO2BIOS; Power |
| Chipset Manufacturer | Intel |
| Chipset Model | Z87 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600 |
| depth | 9.6 in. |
| DisplayPort | Yes |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1.72 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | MSI Direct OC, V-Check Points, Onboard LED, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, 20 Phase Power Design, Super Charger, AMD 3-way CrossFireX technology support, Easy Button 3, Intel Wireless Display (WiDi), DigitALL Power, MSI Military Class IV, OC Genie 4, MSI MPOWER thermal design, MSI OC PCB, Multi BIOS II, MSI Audio Boost, GO2BIOS, Clear CMOS Button |
| HDMI | Yes |
| Internal Interfaces | 4 x USB 2.0 - header; 4 x USB 3.0 - header; 1 x audio - header |
| manufacturer | MSI |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 3 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-3000/PC3-24000 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | Z87 MPOWER MAX AC |
| Multi GPU Supported | SLI; CrossFireX |
| Network Controller | Killer Gaming E2205 / Intel Dual Band Wireless-AC 7260 |
| Number of Memory Slots | 4 |
| Number of mSATA Interfaces | 1 |
| Number of PCI Express x1 Slots | 4 |
| Number of PCI Express x16 Slots | 3 |
| Number of SATA Interfaces | 8 |
| Number of Total Expansion Slots | 7 |
| Onboard Audio Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | Z87 MPOWER MAX AC Desktop Motherboard; Intel® Wi-Fi / Bluetooth Module; 2 x Anetennas |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 Ethernet (RJ-45); 2 HDMI out; 1 microphone; 4 onboard USB 2.0; 4 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 6 USB 2.0; 2 USB 3.0 |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| PS/2 Port | Yes |
| RAID Features | Intel Rapid Storage Technology |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC1150 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin SATA, 1 x mSATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 8 |
| Total Number of PCI Express Slots | 7 |
| Total Number of USB Ports | 8 |
| Total Processor Supported | 1 |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
