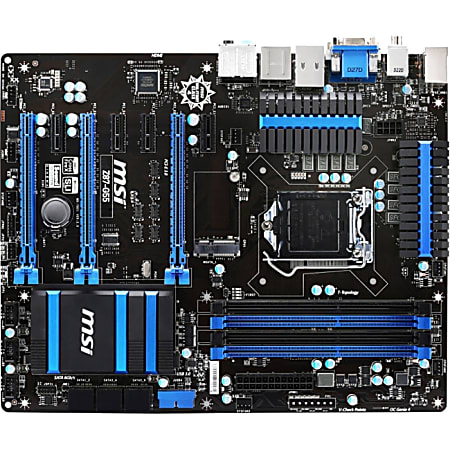

MSI Z87-G55 Desktop Motherboard - Intel Z87 Express Chipset - Socket H3 LGA-1150
1 / 1
$150.99/each
Description
The Z87-G55 features MSI's Military Class 4 components that support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The standard in stability built on a proven technology of high quality components. SLI technology allows using multiple NVIDIA graphics cards in a single computer system with a motherboard equipped with an nForce SLI MCP. Users need a motherboard with two PCI-Express 16x graphics slots and two matching GeForce graphics cards which are "SLI ready".AMD CrossFire is the ultimate multi-GPU performance gaming platform. Enabling game-dominating power, AMD CrossFire technology enables two or more discrete graphics processors to work together to improve graphics performance. AMD CrossFire technology allows you to expand your system's graphics capabilities. It allows you the ability to scale your system's graphics horsepower as you need it, supporting up to four AMD Radeon HD graphics cards, making it the most scalable gaming platform ever. With an AMD CrossFire gaming technology, the traditional graphics limitation exists no more, allowing you to enjoy higher performance as well as visual experience.Hear your enemies perfectly, even on an ear-drum shattering battlefield. Thanks to Sound Blaster Cinema, you're getting amazing surround sound with just stereo headphones. Your most important gaming sound effects are reproduced crystal clear allowing you to focus on your game even during extremely long gaming sessions. Powered by the SBX Pro Studio technologies, Sound Blaster Cinema enables you to clearly hear specific sounds in gaming environments, making your ears a decisive tool on the battlefield.
Specifications
Product Specifications
Item # | 137413 |
Manufacturer # | Z87-G55 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC892 |
BIOS Features | DMI support, M-Flash, MSI ClickBIOS 4 |
brand name | MSI |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.) |
Chipset Manufacturer | Intel |
Chipset Model | Z87 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 9.6 in. |
DVI | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1.72 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | V-Check Points, Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, Intel Smart Response Technology, AMD 3-way CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, MSI Military Class IV, Military Class Essentials, OC Genie 4, MSI Fast Boot, MSI Super RAID, 4K resolution support |
HDMI | Yes |
Internal Interfaces | 6 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x serial - header |
manufacturer | MSI |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 3 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-3000/PC3-24000 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | Z87-G55 |
Multi GPU Supported | CrossFireX; SLI |
Network Controller | Realtek RTL8111G |
Number of Memory Slots | 4 |
Number of mSATA Interfaces | 1 |
Number of PCI Express x1 Slots | 4 |
Number of PCI Express x16 Slots | 3 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 7 |
Onboard Audio Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
PS/2 Port | Yes |
RAID Features | Intel Rapid Storage Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC892 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin SATA, 1 x mSATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 7 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
