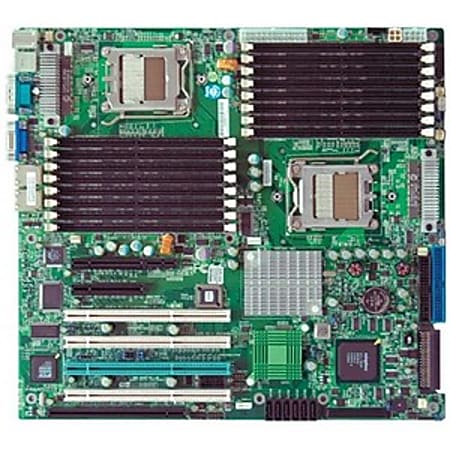

Supermicro H8DME-2 Server Motherboard - NVIDIA Chipset - Socket F (1207) - Retail Pack

Name: Supermicro H8DME-2 Server Motherboard - NVIDIA Chipset - Socket F (1207) - Retail Pack
Brand: Supermicro
SKU: 152673
Price: 340.99 USD
Availability: InStock

1 / 1

Description

H8DME-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Specs

Specifications

Item #	152673
Manufacturer #	MBD-H8DME-2-O
Additional Connectors (Optional)	4 x USB 2.0
BIOS Features	Flash virus protection, power failure recovery (AC loss resume), DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support, IPMI support
BIOS Type	AMI
brand name	Supermicro
Bus Clock	667 MHz, 533 MHz, 400 MHz
Chipset Manufacturer	NVIDIA
Compatible Processors	Opteron 2000 Series
controller type	Floppy Controller; Serial ATA/300; Ultra ATA/133 (ATA-7)
depth	13.1 in.
Gigabit Ethernet	Yes
Graphics Controller	ATI ES1000
Graphics Controller Manufacturer	ATI
Graphics Controller Model	ES1000
Hardware Features	Chassis intrusion detection, WatchDog Timer
Hardware Monitoring	CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
HyperTransport Speed	1000 MHz
Internal Interfaces	1 x floppy
manufacturer	Supermicro Computer, Inc
Max Bus Speed	1000 MHz
Max Processors Qty	2
Max Size	64 GB
Maximum Memory	64 GB
Memory Speed Supported	667 MHz; 533 MHz; 400 MHz
Memory Standard	DDR2-667/PC2-5300; DDR2-533/PC2-4200; DDR2-400/PC2-3200
Memory Technology	DDR2 SDRAM
model	H8DME-2
Number of IDE Interfaces	1
Number of Memory Slots	16
Number of PCI Express x8 Slots	2
Number of PCI-X Slots	4
Number of SATA Interfaces	6
Number of Total Expansion Slots	7
Onboard LEDs Header	Yes
Onboard Video	On-board Video Chipset
Package Type	Retail
ports	1 Ethernet (RJ-45); 1 serial; 2 USB 2.0; 1 VGA 15-pin D-sub
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Processor Socket	Socket F
Processor Supported	Opteron
Processor Technology	HyperTransport Technology
Registered or Buffered	Registered, buffered
Sleep / Wake Up	Keyboard wake up, wake on modem (WOM), wake on LAN (WOL), wake on ring (WOR)
Storage Interfaces	SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 0+1 / RAID 5 / JBOD; ATA-133 -connectors: 1 x 40pin IDC - 2 devices
Supported RAM Integrity Check	ECC
Total Number of Onboard USB Ports	4
Total Number of PCI Express Slots	2
Total Number of USB Ports	2
Total Processor Supported	2
