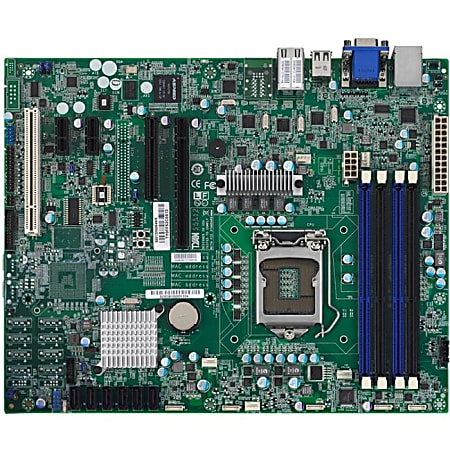

Tyan S5512-LE Server Motherboard - Intel Chipset - Socket H2 LGA-1155 - 1 x Retail Pack

Name: Tyan S5512-LE Server Motherboard - Intel Chipset - Socket H2 LGA-1155 - 1 x Retail Pack
Brand: Tyan
SKU: 158536
Price: 219.99 USD
Availability: InStock

1 / 1

Description

Specs

Specifications

Item #	158536
Manufacturer #	S5512G2NRLE
64-bit Processing	Yes
BIOS Features	WfM 2.0 support, ACPI 2.0 support, SMBIOS 2.3 support
BIOS Type	AMI
brand name	Tyan
Bus Clock	1333 MHz, 1066 MHz, 800 MHz
Chipset Manufacturer	Intel
Compatible Processors	Core i3, Xeon E3-1200 series ( Maximum TDP 95 Watt )
controller type	Serial ATA/300
depth	9.6 in.
Environmental Certification	RoHS-6; WEEE; China RoHS
form factor	Atx
Gigabit Ethernet	Yes
Graphics Controller	ASPEED AST2150
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2150-GP-V
Hardware Features	Chassis intrusion detection, WatchDog Timer
Hardware Monitoring	CPU core temperature, chassis temperature, system voltage, CPU core voltage
Internal Interfaces	4 x USB 2.0
manufacturer	Tyan Computer Corp
Max Processors Qty	1
Max Size	32 GB
Maximum Memory	32 GB
Memory Form Factor	DIMM; UDIMM
Memory Speed Supported	1.33 GHz; 1.07 GHz
Memory Standard	DDR3-1333/PC3-10600; DDR3-1066/PC3-8500
Memory Technology	DDR3 SDRAM
model	S5512-LE
Network Controller	2 x Intel 82574L
Number of Memory Slots	4
Number of PCI Express x1 Slots	2
Number of PCI Express x16 Slots	1
Number of PCI Express x8 Slots	1
Number of PCI Slots	1
Number of SATA Interfaces	6
Number of Total Expansion Slots	5
Onboard LEDs Header	Yes
Onboard Video	On-board Video Chipset
package contents	S5512-LE Server Motherboard; 1 x User's Manual; 1 x Quick Ref. Guide; 1 x Installation CD; 1 x I/O Shield; 6 x SATA Signal Cables; 1 x USB2.0 Cable; 1 x I/O shield Installation Guide
Package Type	Retail
PCI Express Standard	PCI Express 3.0; PCI Express 2.0
ports	2 Ethernet (RJ-45); 4 onboard USB 2.0; 1 serial; 4 USB 2.0; 1 VGA 15-pin D-sub
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Power Supply Supported	ATX12V
Processor Socket	LGA1155 Socket
Processor Supported	Xeon; Core i3
quantity	1
RAID Levels	0; 1; 5; 1+0
RAID Supported	Yes
Registered or Buffered	Unbuffered
Storage Interfaces	SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
Supported RAM Integrity Check	ECC
Total Number of Onboard USB Ports	4
Total Number of PCI Express Slots	4
Total Number of USB Ports	4
Total Processor Supported	1
