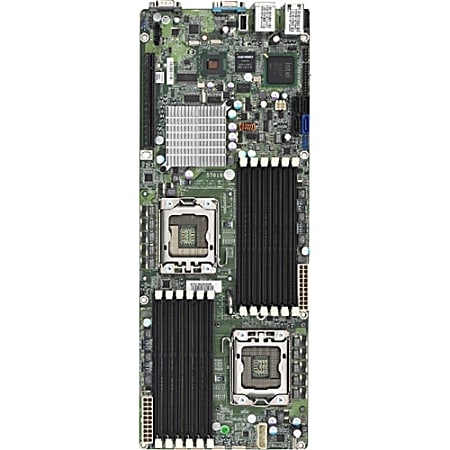

Tyan S7018GM3NR Server Motherboard - 5500, Intel Chipset - Socket B LGA-1366

Name: Tyan S7018GM3NR Server Motherboard - 5500, Intel Chipset - Socket B LGA-1366
Brand: Tyan
SKU: 159490
Price: 415.99 USD
Availability: InStock

1 / 1

Description

For high density and high performance intensive IT datacenters, Tyan's S7018 is the perfect-fit solution with additional space saving design.

Specs

Specifications

Item #	159490
Manufacturer #	S7018GM3NR
64-bit Processing	Yes
Additional Connectors (Optional)	4 x USB 2.0
BIOS Features	WfM 2.0 support, ACPI 2.0 support, SMBIOS 2.3 support, IPMI support
BIOS Type	AMI
brand name	Tyan
Bus Clock	1333 MHz, 1066 MHz, 800 MHz
Chipset Manufacturer	Intel
Chipset Model	5500
Compatible Processors	Quad-Core Xeon 5500 series, Quad-Core Xeon 5600 series
controller type	Serial ATA/300
depth	16.4 in.
Environmental Certification	RoHS-6
Gigabit Ethernet	Yes
Graphics Controller	ASPEED AST2050
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2050
Hardware Features	Chassis intrusion detection, WatchDog Timer
Hardware Monitoring	CPU core temperature, chassis temperature, system voltage, CPU core voltage
manufacturer	Tyan Computer Corp
Max Processors Qty	2
Max Size	96 GB
Maximum Memory	96 GB
Memory Speed Supported	1.33 GHz; 1.07 GHz; 800 MHz
Memory Standard	DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400
Memory Technology	DDR3 SDRAM
model	S7018GM3NR
Number of Memory Slots	12
Number of PCI Express x16 Slots	1
Number of SATA Interfaces	4
Number of Total Expansion Slots	2
Onboard LEDs Header	Yes
Onboard Video	On-board Video Chipset
package contents	S7018 Series S7018GM3NR Server Motherboard; 1 x User's Manual; 1 x Quick Ref. Guide; 1 x Installation CD
ports	1 Ethernet (RJ-45); 1 serial; 2 USB 2.0; 1 VGA 15-pin D-sub
Power Connectors	20-pin main power connector
Processor Socket	LGA1366 Socket
Processor Supported	Xeon Hexa-core; Xeon Quad-core; Xeon Dual-Core
Processor Technology	Enhanced SpeedStep Technology
Product Series	S7018
QuickPath Interconnect	6.40 GT/s
RAID Features	Intel Matrix RAID Technology
RAID Levels	0; 1; 5; 1+0
RAID Supported	Yes
Registered or Buffered	Registered, unbuffered
Storage Interfaces	Intel ICH10R: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
Supported RAM Integrity Check	ECC
Total Number of Onboard USB Ports	2
Total Number of PCI Express Slots	1
Total Number of USB Ports	2
Total Processor Supported	2
