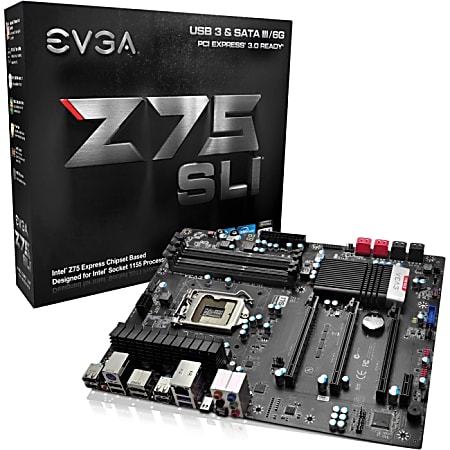

Sign up for EVGA 131-IB-E695-KR Desktop Motherboard - Intel Z75 Express Chipset - Socket H2 LGA-1155
1 / 1
$226.99/each
Description
The EVGA Z75 SLI is here. Featuring native USB 3.0 and SATA 6G, 2-way SLI on PCI-E 3.0, Gigabit NIC, and a mini DisplayPort connector are all included on the board. EVGA knows that power is critical for a performance board. No compromises were made here. With 7+1 power phases, POSCAP and solid state capacitors deliver clean, stable power to your CPU. For storage, the EVGA Z75 SLI has you covered. Native USB 3.0 support delivers super speed performance for next generation storage devices, and native SATA 6G enables maximum performance on the SolidState and mechanical storage drives.
Specifications
Product Specifications
| Item # | 168382 |
| Manufacturer # | 131-IB-E695-KR |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC889 |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| brand name | EVGA |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 800 MHz, 1866 MHz, 2133 MHz |
| Buttons & Keys | CMOS Clear; Reset; Power |
| Chipset Manufacturer | Intel |
| Chipset Model | Z75 Express |
| Compatible Processors | Core i5, Core i7 |
| controller type | Serial ATA/300; Serial ATA/600 |
| depth | 9.6 in. |
| DisplayPort | Yes |
| Environmental Certification | WEEE |
| eSATA | Yes |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| manufacturer | EVGA CORPORATION |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 2.13 GHz (O.C.); 1.87 GHz; 1.60 GHz; 1.33 GHz; 1.07 GHz; 800 MHz |
| Memory Standard | DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Memory Technology | DDR3 SDRAM |
| model | 131-IB-E695-KR |
| Multi GPU Supported | SLI; CrossFireX |
| Network Controller | Marvell Yukon 88E8057 |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Number of SATA Interfaces | 8 |
| Number of Total Expansion Slots | 4 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | 131-IB-E695-KR Desktop Motherboard; 2 x SATA 3G Data Cables; 2 x SATA 6G Data Cables; 2 x SATA Power Adapters; Rear Case I/O Panel; Visual Installation Guide; Manual; EVGA Driver Installation Disc with EVGA E-LEFT |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 2 eSATA; 1 Ethernet (RJ-45); 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 6 USB 2.0; 2 USB 3.0 |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1155 Socket |
| Processor Supported | Core i5; Core i7; Core i3 |
| PS/2 Port | Yes |
| RAID Levels | 0; 1; 5; 1+0; JBOD |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC889 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1; SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 0+1 / RAID 5 / RAID 10 / JBOD |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 6 |
| Total Number of PCI Express Slots | 4 |
| Total Number of USB Ports | 8 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$226.99/each
