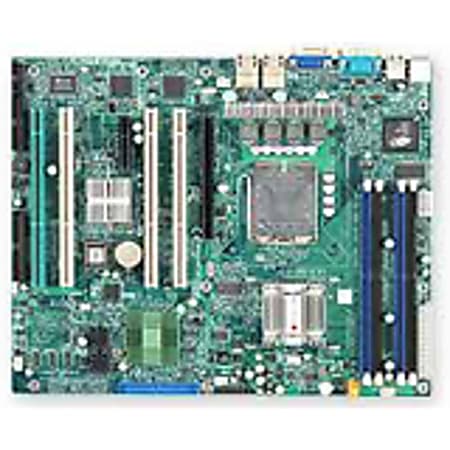

Sign up for Supermicro PDSME Server Motherboard - Intel E7230 Chipset - Socket T LGA-775 - 1 x Retail Pack
1 / 1
$287.99/each
Description
Superior design and uncompromising quality control enabled Supermicro to offer high-end products with unsurpassable performance to the market. With this unbeatable track record, Supermicro has earned a reputation as a manufacturing leader in the industry. Supermicro strives to build long-term relationships with customers by providing them with outstanding engineering innovations, quality, availability, and reliability in today's mission-critical fast-paced e-world.
Specifications
Product Specifications
| Item # | 278590 |
| Manufacturer # | MBD-PDSME+-O |
| Additional Information | Chipset:The Intel E7230 Chipset consists of the following components:; Memory Controller Hub (MCH); I/O Controller (ICH7R); PCI-X (PXH); Memory Controller Hub (MCH):Manages the data flow between four interfaces:; CPU interface; DDR2 System Memory Interface; PCI Express Interface; Direct Media Interface (DMI); I/O Controller (ICH7R):Provides the data buffering and interface arbitration required for the system to operate efficiently; BIOS Features:Plug and Play (P n P); DMI 2.3 support; PCI 2.2 |
| BIOS Features | APM 1.2 support, ACPI 1.0 support, DMI 2.3 support, SMBIOS 2.3 support |
| BIOS Type | Phoenix |
| brand name | Supermicro |
| Bus Clock | 667 MHz, 533 MHz, 400 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | E7230 |
| Compatible Processors | Pentium 4, Pentium 4 Extreme Edition, Celeron D, Pentium Extreme Edition, Pentium D |
| controller type | Floppy Controller; Serial ATA/300; Ultra ATA/100 (ATA-6) |
| Dedicated Video Memory | 8 MB |
| depth | 9.6 in. |
| Front Side Bus | 533 MHz; 800 MHz; 1066 MHz |
| Gigabit Ethernet | Yes |
| Graphics Controller | ATI RAGE XL |
| Graphics Controller Manufacturer | ATI |
| Graphics Controller Memory | 8 MB |
| Graphics Controller Model | Rage-XL |
| Hardware Features | Chassis intrusion detection |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
| Internal Interfaces | 1 x floppy |
| Manual Settings | CPU frequency, processor core voltage |
| manufacturer | Supermicro Computer, Inc |
| Max Bus Speed | 1066 MHz |
| Max Processors Qty | 1 |
| Max Size | 8 GB |
| Maximum Memory | 8 GB |
| Memory Speed Supported | 667 MHz; 533 MHz; 400 MHz |
| Memory Standard | DDR2-400/PC2-3200; DDR2-533/PC2-4200; DDR2-667/PC2-5300 |
| Memory Technology | DDR2 SDRAM |
| model | PDSME |
| Number of IDE Interfaces | 1 |
| Number of Memory Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI-X Slots | 4 |
| Number of SATA Interfaces | 4 |
| Number of Total Expansion Slots | 5 |
| Onboard LEDs Header | Yes |
| Onboard Video | On-board Video Chipset |
| package contents | 1 x PDSME Motherboard; 1 x Manual for PDSME; 1 x ATX Floppy Cable; 1 x ATA 66/100 IDE LP Cable; 4 x SATA Cable (2 Ft.); 1 x Version 1.02 (or newer) CD; 1 x I/O Shield for PDSME |
| Package Type | Retail |
| Packing | Box |
| ports | 1 Ethernet (RJ-45); 1 serial; 2 USB 2.0; 1 VGA 15-pin D-sub |
| Processor Socket | LGA775 Socket |
| Processor Supported | Pentium 4 (Extreme Edition); Pentium 4; Pentium D; Celeron D |
| Processor Technology | Hyper-Threading Technology |
| quantity | 1 |
| Registered or Buffered | Unbuffered |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Storage Interfaces | SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; ATA-100 -connectors: 1 x 40pin IDC - 2 devices |
| Supported RAM Integrity Check | ECC |
| Total Number of Onboard USB Ports | 2 |
| Total Number of PCI Express Slots | 1 |
| Total Number of USB Ports | 2 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$287.99/each
