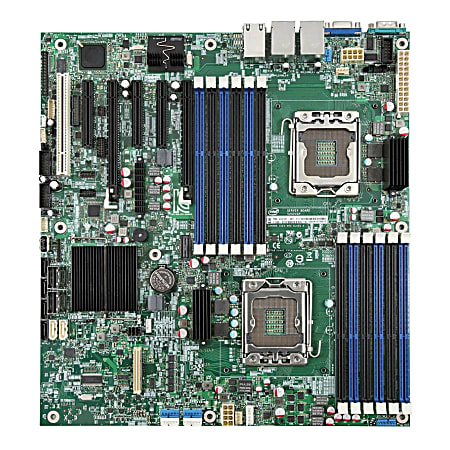

Intel S2400GP2 Server Motherboard - Intel Chipset - Socket B2 LGA-1356

Name: Intel S2400GP2 Server Motherboard - Intel Chipset - Socket B2 LGA-1356
Brand: Intel
SKU: 288892
Price: 475.99 USD
Availability: InStock

1 / 1

Description

The Intel Server Board S2400GP is monolithic printed circuit boards (PCBs) with features designed to support the pedestal and rack server markets.

Specs

Specifications

Item #	288892
Manufacturer #	DBS2400GP2
64-bit Processing	Yes
BIOS Features	IPMI support
BIOS Type	Intel
brand name	Intel
Bus Clock	1600 MHz, 1333 MHz, 1066 MHz, 800 MHz
Chipset Manufacturer	Intel
Compatible Processors	Xeon E5-2400 series
controller type	3Gb/s SAS; Serial ATA/300; Serial ATA/600
Dedicated Video Memory	16 MB
depth	13 in.
form factor	SSI EEB
Gigabit Ethernet	Yes
Graphics Controller	ServerEngines Pilot III
Graphics Controller Memory	16 MB
Graphics Memory Accessibility	Dedicated
Graphics Memory Technology	DDR3 SDRAM
Hardware Features	Trusted Platform Module (TPM), Intel Fast Memory Access Technology
Internal Interfaces	1 x USB 2.0 - Type A; 2 x USB 2.0; 1 x serial
manufacturer	INTEL CORPORATION
Max Processors Qty	2
Max Size	384 GB
Maximum Memory	384 GB
Memory Form Factor	UDIMM; RDIMM; LRDIMM; DIMM
Memory Speed Supported	1.60 GHz; 1.33 GHz; 1.07 GHz; 800 MHz
Memory Standard	DDR3-800/PC3-6400; DDR3-1066/PC3-8500; DDR3-1333/PC3-10600; DDR3-1600/PC3-12800
Memory Technology	DDR3 SDRAM
model	S2400GP2
Network Controller	Intel I350
Number of Memory Slots	12
Number of PCI Express x16 Slots	2
Number of PCI Express x8 Slots	3
Number of PCI Slots	1
Number of SAS Interfaces	8
Number of SATA Interfaces	6
Number of Total Expansion Slots	6
Onboard LEDs Header	Yes
Onboard Serial Header	Yes
Onboard Video	On-board Video Chipset
PCI Express Standard	PCI Express 3.0
ports	2 Ethernet (RJ-45); 5 onboard USB 2.0; 4 USB 2.0; 1 VGA 15-pin D-sub
Processor Socket	LGA1356 Socket
Processor Supported	Xeon
Processor Technology	Trusted Execution Technology
QuickPath Interconnect	8 GT/s
RAID Features	Software RAID 0/ 1 / 10 / 5
RAID Levels	0; 1; 5; 1+0
RAID Supported	Yes
Registered or Buffered	Registered, unbuffered
Storage Interfaces	SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-300 -connectors: 8 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
Supported RAM Integrity Check	ECC
Total Number of Onboard USB Ports	5
Total Number of PCI Express Slots	5
Total Number of USB Ports	4
Total Processor Supported	2
