Description
APC UPS Network Management Card allow for secure monitoring and control of an individual APC UPS via web browser, command line interface, or SNMP. Embedded technology provides exceptional reliability with notification features that inform you of problems as they occur.
Product Details
| Item # | 315900 |
| OfficeMax # | 23965568 |
| Manufacturer # | BC3031 |
| depth | 4-1/2 in. |
| height | 1-1/2 in. |
| width | 4-3/4 in. |
| Compatible with |
|
| brand name | APC |
| dimensions | 1-1/2 in. X 4-3/4 in. X 4-1/2 in. |
| Eco Label Standard | RoHS |
| Product Type | UPS Remote Management Card |
| quantity | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Management | Data Logging |
| Proprietary Slot Type | SmartSlot |
| Limited Warranty | 2 |
| Product Name | UPS Network Management Card |
| Protocols | HTTP; SNMP; SSH; SSL; Telnet |
| Ethernet Technology | Ethernet |
| Show More ▾ |
Customer Reviews
From the Manufacturer|Powered by
Overview
-

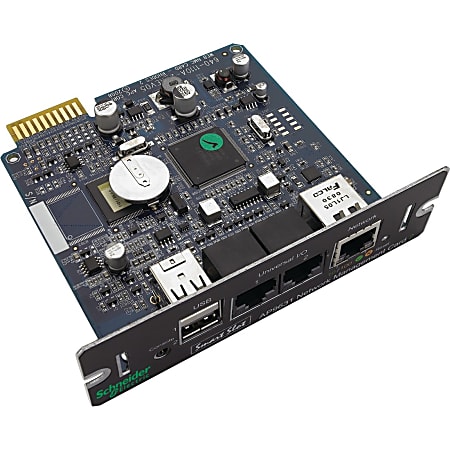

APC AP9631 UPS Network Management Card 2
The APC AP9631 UPS Network Management Card 2 with Environmental Monitoring allows users to monitor and control their APC UPS systems via secure network browsers or external command line interfaces. The card provides multiple-user access and multiple-language support, notifies users when problems occur, and includes individual password protection. The card is capable of operating on a network using IPv6 protocol, and features device encryption to securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), and SNMPv3. Temperature and humidity are monitored and any changes are flagged and reported. Two USB ports support Network Management Card Firmware Upgrade. Through data and event logging, the card helps users identify and pinpoint problematic issues and trends. With the included PowerChute Network Shutdown software, information is kept safe during power outages.
What’s in the Box:
- APC AP9631 UPS Network Management Card 2, CD with software, temperature sensor, and user manual.
-
AP9631 At a Glance:
- Both internal and external accessibility
- Multiple users can access system
- Users are notified of problems
- Temperature and (optional) temperature & humidity monitoring
- Problems are identified through data and event logging
- User friendly UPS firmware upgrade capability
- VMware Ready PowerChute software can shut down multiple servers during outages
Features
-
Network Browser and External Device Accessibility
Users can monitor and control their APC UPS systems with both secure network browsers and external command line interfaces (either Telnet or Secure Shell) via the APC UPS Network Management Card 2. Users are able to reboot equipment with this accessibility, which saves them from having to dispatch technicians to remote locations. -
Features and Compatibility
- IPv6 certified
- RADIUS support
- SMTP authentication - SSL/TLS
- FTP, CLI, Telnet access support
- Secure SSH and HTTPS access
- Secure transfer – SCP
- Simultaneous, multiple user access
- SNMP v1, v2, v3 support
- Data and Event logging
- Device encryption - Up to 2048-bit
-
Multiple-User Access and Multiple-Language Support
The management card allows for multiple-user access, which supports simultaneous network web browsing for up to eight users and command line interface browsing for up to three users. It also provides support for up to ten different languages on the network web browser. The card also features password security for individual users, which helps prevent unauthorized access. -
Notification of Problems for Quick Resolution
With the management card, users will be notified of any problems, which helps them ensure that these issues are dealt with in a timely manner. The card also allows users to customize the shutdown and reboot of equipment and UPS systems.
-
Temperature and Humidity Monitoring for System Safety
The management card features input and output ports that support a temperature sensor (included), a temperature and humidity sensor (optional), and a dry-contact accessory (optional). Changes in temperature or humidity are flagged and reported to users via user interface or email. -
UPS Firmware Update
The management card includes a user friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only). Additionally, two USB ports support Network Management Card Firmware Upgrade. -
Data and Event Logging Help Identify Problems
The management card features data logging, which identifies problematic trends and exports the data log for analysis. It also allows for event logging, which can pinpoint timing and sequence of events for any problems that need to be investigated. -
PowerChute Network Shutdown Software Shuts Down Servers
The management card includes VMware Ready PowerChute Network Shutdown software, which helps keep business information safe by shutting down multiple servers in the event of a power outage. The software offers advanced integration support for VMware ESX/ESXi, and Microsoft Hyper-V. -
Two-Year Factory Warranty
APC warrants management cards to be free from defects for two years from the date of purchase.
APC Network Management Cards
|
|
|
|
|---|---|---|---|
| APC AP9631 UPS Network Management Card 2 | APC AP9630 UPS Network Management Card 2 | APC AP9618 UPS Network Management Card | |
| UPS Network Management Card Features |
With Environmental Monitoring
|
N/A
|
With Environmental Monitoring and Out of Band Management
|
