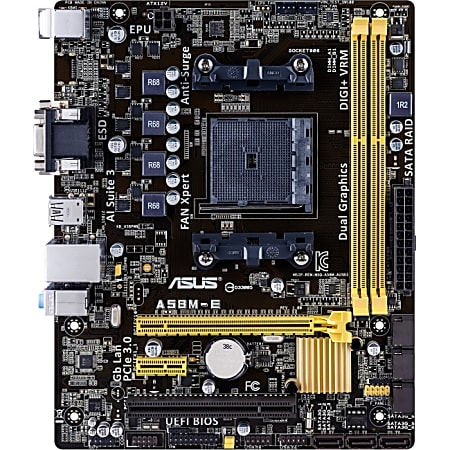

Sign up for Asus A58M-E Desktop Motherboard - AMD A58 Chipset - Socket FM2+
1 / 1
$59.09/each
Description
ASUS motherboard guards your PC with 5x protection. ASUS uses quality components like DIGI+ VRM digital power design for precise APU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage.Media-renowned UEFI BIOS from ASUS provides the smooth mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, D.O.C.P profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
Specifications
Product Specifications
| Item # | 3351240 |
| Manufacturer # | A58M-E |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC887-VD |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, UEFI BIOS, SMBIOS 2.7 support, ACPI 4.0a support |
| BIOS Type | AMI |
| brand name | ASUS |
| Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz, 2400 MHz (O.C.) |
| Chipset Manufacturer | AMD |
| Chipset Model | A58 |
| Compatible Processors | Athlon, A series (supports CPUs with up to 4 cores) |
| controller type | Serial ATA/300 |
| depth | 7.2 in. |
| DVI | Yes |
| Environmental Certification | WEEE; RoHS; ErP Ready |
| form factor | Micro ATX |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Memory | 2 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | Jack retasking, ASUS Anti-Surge Protection, ASUS Q-Design, ESD Guards, 3+1 Phase Power Design, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD Radeon Dual Graphics, Disk Unlocker, AMD Turbo CORE 3.0 technology, AMD Memory Profile (AMP) support, ASUS 5X PROTECTION, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O |
| Internal Interfaces | 4 x USB 2.0 - header; 1 x audio - header; 1 x serial - header; 1 x SPDIF out - header |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 2.40 GHz (O.C.); 2.13 GHz; 1.87 GHz; 1.60 GHz; 1.33 GHz |
| Memory Standard | DDR3-2400/PC3-19200 (O.C.); DDR3-2133/PC3-17000; DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Memory Technology | DDR3 SDRAM |
| model | A58M-E |
| Multi GPU Supported | Hybrid CrossFireX |
| Network Controller | Realtek RTL8111GR |
| Number of Memory Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Number of PCI Slots | 1 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Onboard Audio Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | A58M-E Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 3Gb/s cable(s); Support Disc |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 microphone; 4 onboard USB 2.0; 2 PS/2; 4 USB 2.0; 1 VGA 15-pin D-sub |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Power Supply Supported | ATX12V |
| Processor Socket | Socket FM2+ |
| Processor Supported | A-Series; Athlon; Sempron |
| Processor Technology | Turbo Core 3.0 Technology |
| PS/2 Port | Yes |
| RAID Levels | 0; 1; 1+0; JBOD |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887-VD |
| Storage Interfaces | SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / JBOD |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 4 |
| Total Number of PCI Express Slots | 2 |
| Total Number of USB Ports | 4 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
| weight | 1.81 lb |
$59.09/each
