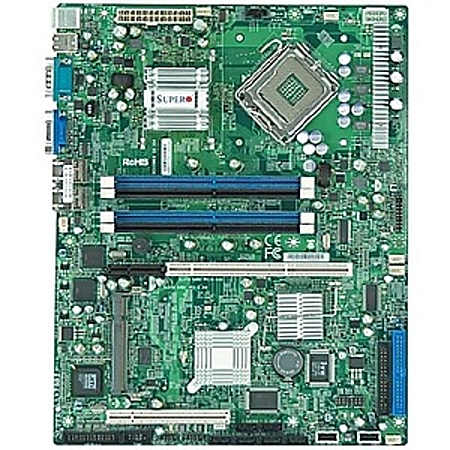

Supermicro X7SBi Server Motherboard - Intel Chipset - Socket T LGA-775

Name: Supermicro X7SBi Server Motherboard - Intel Chipset - Socket T LGA-775
Brand: Supermicro
SKU: 336030
Price: 251.99 USD
Availability: InStock

1 / 1

Description

X7SBi Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Specs

Specifications

Item #	336030
Manufacturer #	X7SBI
Additional Connectors (Optional)	6 x USB 2.0
BIOS Features	ACPI 1.0 support, DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support, IPMI support
BIOS Type	Phoenix
brand name	Supermicro
Bus Clock	800 MHz, 667 MHz
Chipset Manufacturer	Intel
Compatible Processors	Core 2 Duo, Dual-Core Xeon 3000 series, Core 2 Quad, Quad-Core Xeon 3200 series
controller type	Floppy Controller; Serial ATA/300; Ultra ATA/100 (ATA-6)
Dedicated Video Memory	32 MB
depth	9.6 in.
form factor	Atx
Front Side Bus	1333 MHz; 1066 MHz; 800 MHz
Gigabit Ethernet	Yes
Graphics Controller	ATI ES1000
Graphics Controller Manufacturer	ATI
Graphics Controller Memory	32 MB
Graphics Controller Model	ES1000
Hardware Features	Diagnostic LEDs, chassis intrusion detection, WatchDog Timer
Hardware Monitoring	CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, CPU core voltage
Internal Interfaces	1 x floppy
manufacturer	Supermicro Computer, Inc
Max Bus Speed	1333 MHz
Max Processors Qty	1
Max Size	8 GB
Maximum Memory	4 GB
Memory Speed Supported	800 MHz; 667 MHz
Memory Standard	DDR2-800/PC2-6400; DDR2-667/PC2-5300
Memory Technology	DDR2 SDRAM
model	X7SBi
Network Controller	Intel 82573V / 82573L
Number of IDE Interfaces	1
Number of Memory Slots	4
Number of PCI Express x8 Slots	1
Number of PCI Slots	1
Number of PCI-X Slots	1
Number of SATA Interfaces	6
Number of Total Expansion Slots	3
Onboard LEDs Header	Yes
Onboard Video	On-board Video Chipset
ports	1 Ethernet (RJ-45); 1 serial; 2 USB 2.0; 1 VGA 15-pin D-sub
Power Connectors	24-pin main power connector, 8-pin ATX12V connector
Processor Socket	LGA775 Socket
Processor Supported	Xeon; Core 2 Quad; Core 2 Duo
Processor Technology	Enhanced SpeedStep Technology
Registered or Buffered	Unbuffered
Sleep / Wake Up	Keyboard wake up, wake on LAN (WOL), wake on ring (WOR)
Storage Interfaces	Intel ICH9R: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; Intel ICH9R: ATA-100 -connectors: 1 x 40pin IDC - 2 devices
Supported RAM Integrity Check	Non-ECC, ECC
Total Number of Onboard USB Ports	2
Total Number of PCI Express Slots	1
Total Number of USB Ports	2
Total Processor Supported	1
