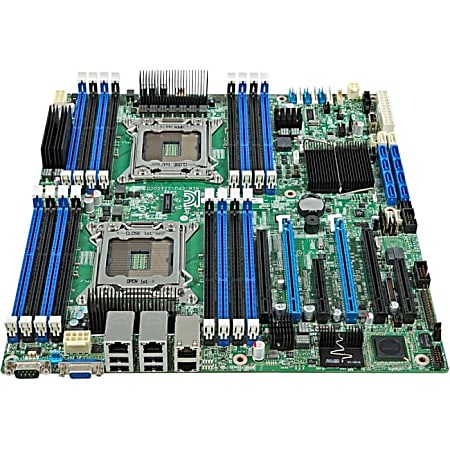

Sign up for Intel S2600COE Server Motherboard - Intel Chipset - Socket R LGA-2011
1 / 1
$602.99/each
Description
Intel server board S2600COE is an extreme server SKU, supporting two E5-2600 CPUs, 16 DIMMs with four 1 Gb Ethernet ports and FireWire.
Specifications
Product Specifications
| Item # | 417493 |
| Manufacturer # | DBS2600COE |
| 64-bit Processing | Yes |
| BIOS Features | IPMI support |
| BIOS Type | Intel |
| brand name | Intel |
| Bus Clock | 1333 MHz, 1066 MHz, 800 MHz |
| Chipset Manufacturer | Intel |
| Compatibility | Intel Server Chassis P4216XXMHGC; Intel Server Chassis P4208XXMHGC; Intel Server Chassis P4208XXMHEN; Intel Server Chassis P4308XXMHJC; Intel Server Chassis P4308XXMHGC; Intel Server Chassis P4308XXMHGN; Intel Server Chassis P4308XXMFGR; Intel Server Chassis P4308XXMFGN; Intel Server Chassis P4308XXMHDR; Intel Server Chassis P4308XXMFDN; Intel Server Chassis P4216XXMHGR; Intel Server Chassis P4208XXMHGR; Intel Server Chassis P4208XXMHDR; Intel Server Chassis P4216XXMHEN |
| Compatible Processors | Xeon E5-2600 series |
| controller type | Serial ATA/300; Serial ATA/600; Serial Attached SCSI (SAS) |
| depth | 13 in. |
| ENERGY STAR | Yes |
| form factor | SSI EEB |
| Gigabit Ethernet | Yes |
| Graphics Controller | Matrox G200 |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | Trusted Platform Module (TPM), Intel Fast Memory Access Technology |
| Internal Interfaces | 1 x USB 2.0 - Type A; 2 x USB 2.0; 2 x FireWire; 1 x serial |
| manufacturer | INTEL CORPORATION |
| Max Processors Qty | 2 |
| Max Size | 512 GB |
| Maximum Memory | 512 GB |
| Memory Form Factor | UDIMM; LRDIMM; RDIMM; DIMM |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz; 800 MHz |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Memory Technology | DDR3 SDRAM |
| model | S2600COE |
| Network Controller | Intel I350 |
| Number of Memory Slots | 16 |
| Number of PCI Express x16 Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of SAS Interfaces | 8 |
| Number of SATA Interfaces | 10 |
| Number of Total Expansion Slots | 6 |
| Onboard LEDs Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 4 Ethernet (RJ-45); 2 onboard FireWire 800; 4 onboard USB 2.0; 1 serial; 4 USB 2.0; 1 VGA 15-pin D-sub |
| Processor Socket | LGA2011 Socket |
| Processor Supported | Xeon |
| Processor Technology | Trusted Execution Technology; Virtualization Technology |
| RAID Features | Software RAID 0/ 1 / 10 / 5 |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Registered, unbuffered |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-300 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | ECC |
| Total Number of Onboard FireWire/i.LINK Ports | 2 |
| Total Number of Onboard USB Ports | 4 |
| Total Number of PCI Express Slots | 6 |
| Total Number of USB Ports | 4 |
| Total Processor Supported | 2 |
| warranty length | 3-year limited |
| What's Included | S2600COE Server Motherboard; I/O Shield; Cables; Configuration Labels; Server Deployment and Management DVD; Quick Start User's Guide |
$602.99/each
