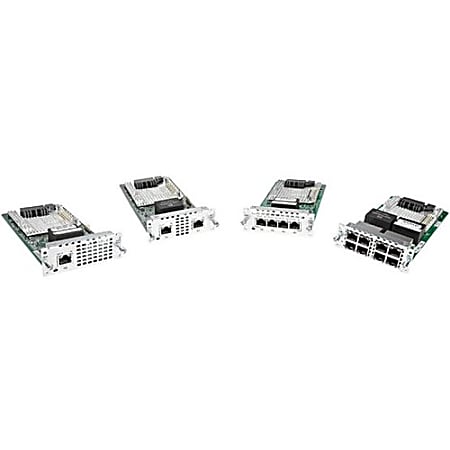

Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module - Expansion module - T1/E1 x 8 - T-1/E-1 - for Cisco 4451-X

Item #4202768
Cisco Fourth-Generation Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module - Expansion module - T1/E1 x 8 - T-1/E-1 - for Cisco 4451-X
Share
1 / 1
$8612.29/each

Description

    • E1/G.703 data. In addition to the basic T1/E1 data support, the CE1T1 versions also support structured G.703 with G.704 framing and unstructured E1 (G.703) applications.
    • Mixed data and packet voice. The modules can simultaneously support both data and voice, reducing the complexity and number of network components and facilitating a graceful migration to bandwidth-efficient packet voice.
    • Basic T1/E1 data. The multiflex trunk (MFT) versions act as WICs, supporting T1, fractional T1, E1, and fractional E1. To simplify remote management, these modules integrate a fully managed DSU/CSU for T1 deployments and a fully managed DSU for E1 deployments.
    • Mixed data and packet voice with drop and insert. You can deploy all the modules as T1/E1 drop-and-insert multiplexers with integrated DSUs/CSUs, reducing the complexity of the network and the cost of the central-office ports by efficiently combining time-division multiplexing (TDM) voice (PBX), IP voice, and data on the same trunks.
    • T1/E1 packet voice. All the modules support packet voice applications by providing T1, fractional T1, E1, and fractional E1 connections to private branch exchanges (PBXs) and central offices, thereby enabling the services and reducing voice and fax toll charges. An additional onboard PVDM4 is required. Also, each NIM has its own PVDM4, so each module can be connected to a different service provider with no single clock domain restriction.
