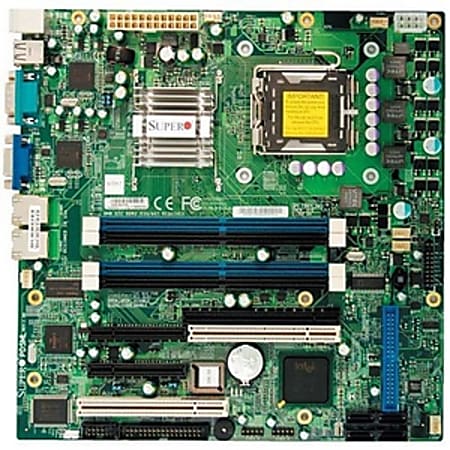

Supermicro PDSML-LN2 Desktop Motherboard - Intel E7230 Chipset - Socket T LGA-775 - 1 x Retail Pack

Name: Supermicro PDSML-LN2 Desktop Motherboard - Intel E7230 Chipset - Socket T LGA-775 - 1 x Retail Pack
Brand: Supermicro
SKU: 453771
Price: 244.99 USD
Availability: InStock

Item #453771

1 / 1

Description

PDSML-LN2 Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Specs

Specifications

Item #	453771
Manufacturer #	MBD-PDSML-LN2-O
Additional Connectors (Optional)	4 x USB 2.0
BIOS Features	ACPI 1.0 support, DMI 2.3 support, IPMI support
BIOS Type	Phoenix
brand name	Supermicro
Bus Clock	667 MHz, 533 MHz
Chipset Manufacturer	Intel
Chipset Model	E7230
Compatible Processors	Pentium 4, Pentium 4 Extreme Edition, Celeron D, Pentium Extreme Edition, Pentium D
controller type	Floppy Controller; Serial ATA/300; Ultra ATA/100 (ATA-6)
Dedicated Video Memory	16 MB DDR SDRAM
depth	9.6 in.
Front Side Bus	1066 MHz; 800 MHz; 533 MHz
Gigabit Ethernet	Yes
Graphics Controller	XGI Volari Z7
Graphics Controller Manufacturer	XGI
Graphics Controller Memory	16 MB
Graphics Controller Model	XG20
Hardware Features	Chassis intrusion detection, WatchDog Timer
Hardware Monitoring	CPU core temperature, chassis temperature, system voltage, CPU core voltage
Internal Interfaces	1 x floppy
manufacturer	Supermicro Computer, Inc
Max Bus Speed	1066 MHz
Max Processors Qty	1
Max Size	8 GB
Maximum Memory	8 GB
Memory Speed Supported	667 MHz; 533 MHz
Memory Standard	DDR2-667/PC2-5300; DDR2-533/PC2-4200
Memory Technology	DDR2 SDRAM
model	PDSML-LN2
Network Controller	Intel 82573V / 82573L
Number of IDE Interfaces	1
Number of Memory Slots	4
Number of PCI Express x4 Slots	1
Number of PCI Slots	1
Number of SATA Interfaces	4
Number of Total Expansion Slots	3
Onboard LEDs Header	Yes
Onboard Video	On-board Video Chipset
Package Type	Retail
ports	1 Ethernet (RJ-45); 1 serial; 6 USB 2.0; 1 VGA 15-pin D-sub
Processor Socket	LGA775 Socket
Processor Supported	Pentium 4; Pentium 4 (Extreme Edition); Celeron D; Pentium D; Pentium Extreme Edition
Processor Technology	Hyper-Threading Technology
quantity	1
Registered or Buffered	Unbuffered
Sleep / Wake Up	Wake on LAN (WOL)
Storage Interfaces	Intel ICH7R: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; Intel ICH7R: ATA-100 -connectors: 1 x 40pin IDC - 2 devices
Supported RAM Integrity Check	Non-ECC, ECC
Total Number of Onboard USB Ports	4
Total Number of PCI Express Slots	1
Total Number of USB Ports	6
Total Processor Supported	1
What's Included	1 x PDSML-LN2 Desktop Board; 1 x Motherboard Manual for PDSML-LN2; 1 x ATX Floppy Cable; 1 x ATA 66/100 IDE LP Cable; 4 x SATA Cable (2Ft.); 1 x Version 1.21 (or newer) CD; 1 x I/O Shield for PDSML-LN2
UPC	672042885152
