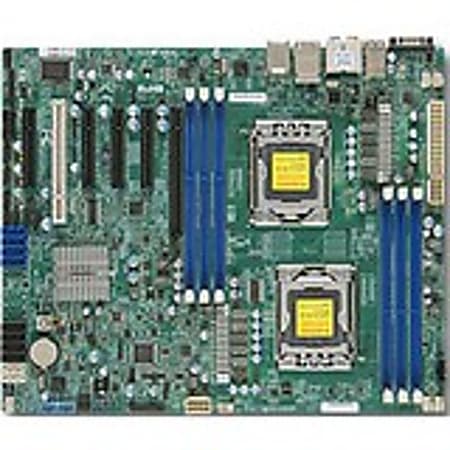

Sign up for Supermicro X9DAL-i Server Motherboard - Intel Chipset - Socket B2 LGA-1356 - 1 x Retail Pack
1 / 1
$357.99/each
DescriptionTechnologically-advanced Motherboard Designs Since 1993 Consistent highest-quality Design, Components, and Production Expertise Extensive Range of x86 Serverboards Available Competitive Price/Performance High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware Standard Form Factors offer Feature - rich Support and application optimization
Major Benefits from Supermicro's in-house Design Superiority
Supermicro motherboard advantages:
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Specifications
Product Specifications
| Item # | 489565 |
| Manufacturer # | X9DAL-I-O |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| BIOS Features | APM 1.2 support, DMI 2.3 support, UEFI BIOS, ACPI 4.0 support, SMBIOS 2.7.1 support |
| BIOS Type | AMI |
| brand name | Supermicro |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 800 MHz |
| Chipset Manufacturer | Intel |
| Compatible Processors | Xeon E5-2400 series (Maximum TDP 95 Watt) |
| controller type | Serial ATA/300; Serial ATA/600 |
| Data Bus Transfer Rate | 8 GT/s |
| depth | 10 in. |
| form factor | Extended ATX |
| Gigabit Ethernet | Yes |
| Hardware Features | Chassis intrusion detection, WatchDog Timer, Intel QuickPath Architecture |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Internal Interfaces | 2 x USB 3.0 - header; 6 x USB 2.0 - header; 1 x serial - header |
| manufacturer | Supermicro Computer, Inc |
| Max Processors Qty | 2 |
| Max Size | 192 GB |
| Maximum Memory | 192 GB |
| Memory Form Factor | RDIMM; UDIMM; LRDIMM; DIMM |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz; 800 MHz |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Memory Technology | DDR3 SDRAM |
| model | X9DAL-i |
| Network Controller | Intel 82574L |
| Number of Memory Slots | 6 |
| Number of PCI Express x16 Slots | 2 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Slots | 1 |
| Number of SATA Interfaces | 10 |
| Number of Total Expansion Slots | 6 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | No |
| Package Type | Retail |
| PCI Express Standard | PCI Express 3.0 |
| ports | 1 audio line in; 1 audio line out; 2 Ethernet (RJ-45); 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 serial; 4 USB 2.0; 2 USB 3.0 |
| Processor Socket | LGA1356 Socket |
| Processor Supported | Xeon |
| PS/2 Port | Yes |
| quantity | 1 |
| QuickPath Interconnect | 8 GT/s |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Registered, unbuffered, Load-Reduced |
| Sleep / Wake Up | Suspend to RAM (STR) |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC889 |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-300 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Total Number of Onboard USB Ports | 8 |
| Total Number of PCI Express Slots | 5 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 2 |
$357.99/each
