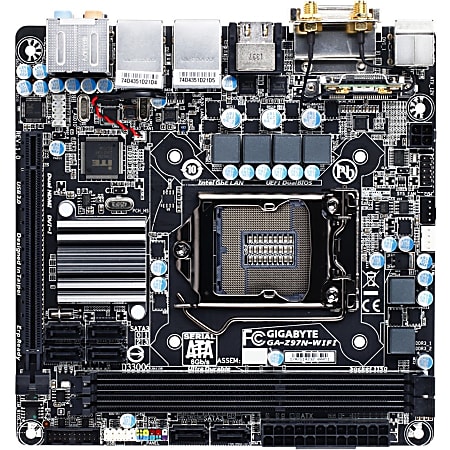

Sign up for Gigabyte Ultra Durable GA-Z97N-WIFI (rev. 1.0) Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150
1 / 1
$169.99/each
Description
Gigabyte 9 series motherboards support the 4th and 5th generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.This motherboard comes with an exclusive IEEE802.11ac Wi-Fi module that supports up to 867 Mbps wireless networks and Bluetooth 4.0. IEEE802.11ac Wi-Fi runs at up to 867 Mbit/s and the bundled 2.4 GHz/5 GHz dual-band, 2T2R antenna gives you wide coverage.
Specifications
Product Specifications
| Item # | 529180 |
| Manufacturer # | GA-Z97N-WIFI |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support |
| BIOS Type | AMI |
| Bluetooth | Yes |
| brand name | Gigabyte |
| Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2500 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 1800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.) |
| Chipset Manufacturer | Intel |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600 |
| depth | 6.7 in. |
| DVI | Yes |
| form factor | Mini ITX |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | DualBIOS, Q-Flash, All-Solid Capacitor motherboard Design, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Intel Smart Response Technology, Ultra Durable, Intel Rapid Start Technology, Intel Smart Connect Technology, GIGABYTE LAN Optimizer, ESD Protection, Clear CMOS Button, GIGABYTE Smart Switch |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| HDMI | Yes |
| Internal Interfaces | 2 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x serial - header; 1 x SPDIF out - header |
| manufacturer | GIGABYTE Technology, Inc |
| Max Processors Qty | 1 |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.50 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz (O.C.); 1.60 GHz; 1.33 GHz |
| Memory Standard | DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2500/PC3-20000 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-3000/PC3-24000 (O.C.) |
| Memory Technology | DDR3 SDRAM |
| model | GA-Z97N-WIFI (rev. 1.0) |
| Number of Memory Slots | 2 |
| Number of Mini PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 2 |
| Onboard Audio Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 2 Ethernet (RJ-45); 2 HDMI out; 1 microphone; 2 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
| Product Line | Ultra Durable |
| Product Series | 9 |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC892 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 4 |
| Total Number of PCI Express Slots | 1 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
$169.99/each
