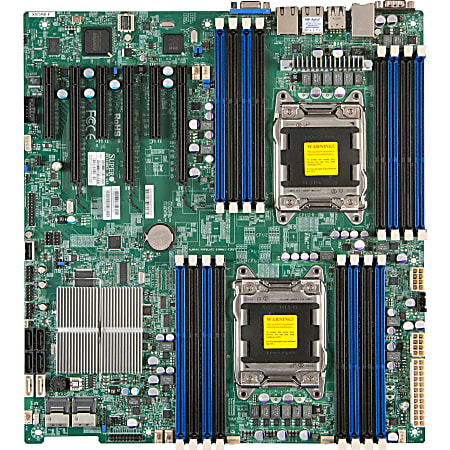

Sign up for Supermicro X9DR3-F Server Motherboard - Intel Chipset - Socket R LGA-2011 - 1 x Retail Pack
1 / 1
$468.99/each
Description
Supermicro's X9 serverboards offer the high levels of performance, efficiency and scalability in the industry. The Supermicro X9 serverboards are available in a variety of architectures including twin and fat twin, GPU supercomputer, data center optimized, SuperServer advantage, I/O optimized, superworkstation, and superstorage solutions. The serverboards offers numerous advantages including up to 768 GB of Reg. ECC DDR3-1600 MHz memory in 24 DIMM slots, SATA 3.0 and SAS 2.0 HDD support, ConnectX FDR/QDR InfiniBand ports, dual 10 Gigabit Ethernet, Quad Ethernet LAN, PCI-E 3.0 technology, IPMI 2.0, and Intel Xeon processor E5-2600/1600 family for high performance. With this X9 Serverboard Platform Supermicro offers the most extensive selection of solutions for data center, enterprise IT, cloud computing, graphics, technical computing, and HPC environments.
Specifications
Product Specifications
| Item # | 554616 |
| Manufacturer # | X9DR3-F-O |
| 64-bit Processing | Yes |
| BIOS Features | ACPI 2.0 support, IPMI support, UEFI BIOS |
| BIOS Type | AMI |
| brand name | Supermicro |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 800 MHz |
| Chipset Manufacturer | Intel |
| Compatible Processors | Xeon E5-2600 series |
| controller type | Serial ATA/600; Serial ATA/300; Serial Attached SCSI (SAS) |
| Data Bus Transfer Rate | 8 GT/s |
| depth | 13.1 in. |
| form factor | Extended ATX |
| Gigabit Ethernet | Yes |
| Graphics Controller | Matrox MGA G200 |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Hardware Features | Chassis intrusion detection, WatchDog Timer, Intel QuickPath Architecture |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Internal Interfaces | 1 x USB 2.0 - Type A; 6 x USB 2.0; 1 x serial |
| manufacturer | Supermicro Computer, Inc |
| Max Processors Qty | 2 |
| Max Size | 512 GB |
| Maximum Memory | 512 GB |
| Memory Form Factor | RDIMM; UDIMM |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz; 800 MHz |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Memory Technology | DDR3 SDRAM |
| model | X9DR3-F |
| Network Controller | Intel I350 |
| Number of Memory Slots | 16 |
| Number of PCI Express x16 Slots | 3 |
| Number of PCI Express x8 Slots | 3 |
| Number of SAS Interfaces | 8 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 6 |
| Onboard LEDs Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | On-board Video Chipset |
| Package Type | Retail |
| PCI Express Standard | PCI Express 3.0 |
| ports | 3 Ethernet (RJ-45); 7 onboard USB 2.0; 1 serial; 4 USB 2.0; 1 VGA 15-pin D-sub |
| Power Supply Supported | EPS12V |
| Processor Socket | LGA2011 Socket |
| Processor Supported | Xeon |
| quantity | 1 |
| QuickPath Interconnect | 8 GT/s |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Registered, unbuffered |
| Storage Interfaces | SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; SAS -connectors: 8 - 8 devices - RAID 0 / RAID 1 / RAID 10 |
| Supported RAM Integrity Check | ECC |
| Total Number of Onboard USB Ports | 7 |
| Total Number of PCI Express Slots | 6 |
| Total Number of USB Ports | 4 |
| Total Processor Supported | 2 |
| warranty length | 3-year limited |
| What's Included | X9DR3-F Server Motherboard; 1 x Motherboard Manual; 2 x SATA CABLE 61CM FLAT S-S PBF; 2 x 30AWG 50CM Ipass to 4 SATA, W/50cm SB, S; 1 x Driver CD; 1 x Std I/O Shield For X9 Socket R Server Mb With Gasket |
