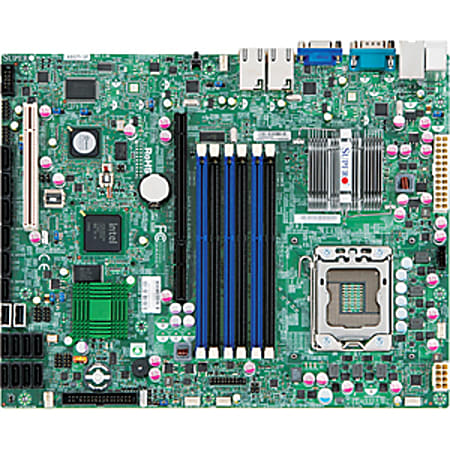

Sign up for Supermicro X8STi Server Motherboard - Intel X58 Express Chipset - Socket B LGA-1366 - Retail Pack
1 / 1
$287.99/each
DescriptionTechnologically-advanced Motherboard Designs Since 1993 Consistent highest-quality Design, Components, and Production Expertise Extensive Range of x86 Serverboards Available Competitive Price/Performance High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware Standard Form Factors offer Feature - rich Support and application optimization
Major Benefits from Supermicro's in-house Design Superiority
Supermicro motherboard advantages:
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Specifications
Product Specifications
| Item # | 563121 |
| Manufacturer # | X8STI-O |
| 64-bit Processing | Yes |
| Additional Connectors (Optional) | 4 x USB 2.0 |
| BIOS Features | ACPI 1.0 support, DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support |
| BIOS Type | AMI |
| brand name | Supermicro |
| Bus Clock | 1333 MHz, 1066 MHz, 800 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | X58 Express |
| Compatible Processors | Core i7 Extreme Edition, Core i7 |
| controller type | Floppy Controller; Serial ATA/300 |
| Dedicated Video Memory | 8 MB DDR2 SDRAM |
| depth | 9.6 in. |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Graphics Controller | Matrox MGA G200 |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Memory | 8 MB |
| Graphics Controller Model | G200eW |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer, Intel QuickPath Architecture |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Internal Interfaces | 1 x floppy |
| manufacturer | Supermicro Computer, Inc |
| Max Processors Qty | 1 |
| Max Size | 24 GB |
| Maximum Memory | 24 GB |
| Memory Speed Supported | 1.33 GHz; 1.07 GHz; 800 MHz |
| Memory Standard | DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Memory Technology | DDR3 SDRAM |
| model | X8STi |
| Network Controller | 2 x Intel 82574L |
| Number of Memory Slots | 6 |
| Number of PCI Express x16 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Slots | 1 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Onboard LEDs Header | Yes |
| Onboard Video | On-board Video Chipset |
| Package Type | Retail |
| ports | 1 Ethernet (RJ-45); 2 PS/2; 1 serial; 2 USB 2.0; 1 VGA 15-pin D-sub |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Processor Socket | LGA1366 Socket |
| Processor Supported | Core i7; Core i7 Extreme Edition |
| PS/2 Port | Yes |
| QuickPath Interconnect | 6.40 GT/s |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sleep / Wake Up | Keyboard wake up, wake on LAN (WOL), wake on ring (WOR) |
| Storage Interfaces | Intel ICH10R: SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Total Number of Onboard USB Ports | 4 |
| Total Number of PCI Express Slots | 2 |
| Total Number of USB Ports | 2 |
| Total Processor Supported | 1 |
| What's Included | X8STi Server Board; 1 x ATX Floppy Cable; 6 x 2ft. Amphenol, SATA Cable; 1 x CD; 1 x Motherboard I/O Shield |
$287.99/each
