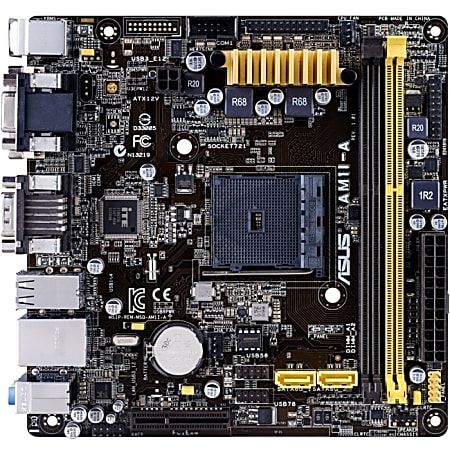

Asus AM1I-A Desktop Motherboard - AMD Chipset - Socket AM1
1 / 1
$52.99/each
Description
This powerful and innovative motherboard supports both dual- and quad-core AMD Athlon and Sempron SoC (system-on-a-chip) APUs integrating Radeon HD graphics and support for HD video playback. This revolutionary APU (Accelerated Processing Unit) combines high processing power, advanced Microsoft DirectX 11.1 graphics, and Fusion controller hubs (FCHs) in one small, efficient package. This SoC APU features up to single-channel DDR3 1600/1333 memory, SATA 6 Gbit/s and USB 3.0 natively. AMD Athlon/Sempron APUs are the first multi-core x86 SoC with AM1 series socket solution for entry-level desktops, improving performance by over 50 percent compared to the previous generation of AMD APUs.
Specifications
Product Specifications
Item # | 615807 |
Manufacturer # | AM1I-A |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC887-VD |
BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, SMBIOS 2.5 support, UEFI BIOS |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz (O.C.) |
Chipset Manufacturer | AMD |
Compatible Processors | Athlon, Sempron (supports CPUs with up to 4 cores) |
controller type | Serial ATA/600 |
depth | 6.7 in. |
DVI | Yes |
Environmental Certification | RoHS; WEEE |
form factor | Mini ITX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | AMD |
Graphics Controller Memory | 2 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | Jack retasking, ASUS Anti-Surge Protection, ASUS Q-Design, CrashFree BIOS 3, audio jack detect technology, ASUS Fan Xpert, USB 3.0 Boost, ASUS Network iControl, AMD Memory Profile (AMP) support, ASUS Boot Setting |
HDMI | Yes |
Internal Interfaces | 4 x USB 2.0 - header; 1 x serial - header; 1 x parallel - header; 1 x audio - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | AM1I-A |
Network Controller | Realtek RTL8111GR |
Number of Memory Slots | 2 |
Number of PCI Express x4 Slots | 1 |
Number of SAS Interfaces | 2 |
Number of Total Expansion Slots | 1 |
Onboard Audio Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | On-board Video Chipset |
package contents | AM1I-A Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 6Gb/s Cable(s); Support Disc |
PCI Express Standard | PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 PS/2; 1 serial; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | Socket AM1 |
Processor Supported | Athlon; Sempron |
PS/2 Port | Yes |
Registered or Buffered | Unbuffered |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887-VD |
Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 4 |
Total Number of PCI Express Slots | 1 |
Total Number of USB Ports | 6 |
$52.99/each
