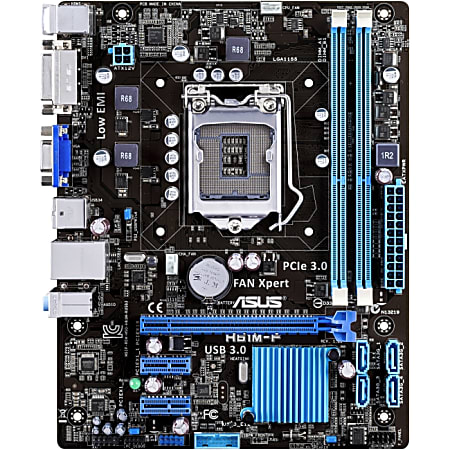

Sign up for Asus H61M-F Desktop Motherboard - Intel H61(B3) Express Chipset - Socket H2 LGA-1155
1 / 1
$53.00/each
Description
This motherboard supports the Intel Core i7/Core i5/Core i3/Pentium/Celeron processors in the LGA1155 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics out with dedicated chipsets, 2-channel (2 DIMMs) DDR3 memory, and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel Core i7/Core i5/Core i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world.The motherboard supports DDR3 memory that features data transfer rates of 2200(O.C)/2133(O.C)/2000(O.C)/1866(O.C)/1600/1333/1066 support MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
Specifications
Product Specifications
| Item # | 623106 |
| Manufacturer # | H61M-F |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC887 |
| BIOS Features | DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, UEFI BIOS, SMBIOS 2.7 support |
| brand name | ASUS |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.) |
| Chipset Manufacturer | Intel |
| Chipset Model | H61(B3) Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/300 |
| depth | 7 in. |
| DVI | Yes |
| Environmental Certification | WEEE; RoHS |
| form factor | Micro ATX |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | ASUS Anti-Surge Protection, ASUS EZ DIY, CrashFree BIOS 3, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, USB 3.0 Boost, ASUS Network iControl, ASUS Boot Setting, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Fast Boot |
| Internal Interfaces | 2 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| Max Processors Qty | 1 |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | H61M-F |
| Network Controller | Realtek RTL8111F |
| Number of Memory Slots | 2 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 1 |
| Number of SATA Interfaces | 4 |
| Number of Total Expansion Slots | 3 |
| Onboard Audio Header | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 microphone; 2 onboard USB 2.0; 2 onboard USB 3.0; 2 PS/2; 4 USB 2.0; 1 VGA 15-pin D-sub |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1155 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| Processor Technology | Turbo Boost Technology 2.0 |
| PS/2 Port | Yes |
| Registered or Buffered | Unbuffered |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887 |
| Storage Interfaces | SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 4 |
| Total Number of PCI Express Slots | 3 |
| Total Number of USB Ports | 4 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$53.00/each
