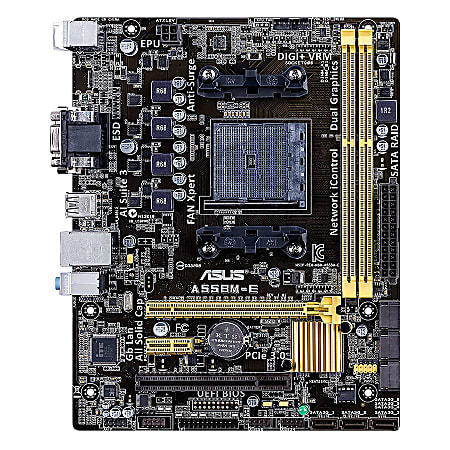

Asus A55BM-E Desktop Motherboard - AMD Chipset - Socket FM2+ - 1 Pack
1 / 1
$69.99/each
Description
This motherboard supports AMD A-series accelerated processor with AMD Radeon HD 7000/8000 series graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5 GT/s.ASUS motherboards guard your PC with 5x protection. They use quality components like DIGI+ VRM digital power design for precise APU power on demand, ESD units tested to strict standards that eliminate electrostatic interference, and resettable fuses around DRAM slots to prevent overcurrent and short-circuit damage.
Specifications
Product Specifications
Item # | 633159 |
Manufacturer # | A55BM-E |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, UEFI BIOS, SMBIOS 2.7 support, ACPI 4.0a support |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz |
Chipset Manufacturer | AMD |
Compatible Processors | Athlon, A series (supports CPUs with up to 4 cores) |
controller type | Serial ATA/300 |
depth | 7.2 in. |
DVI | Yes |
Ethernet | Yes |
form factor | Micro ATX |
Graphics Controller Manufacturer | AMD |
Graphics Controller Memory | 2 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | Jack retasking, ASUS Anti-Surge Protection, ASUS Q-Design, ESD Guards, 3+1 Phase Power Design, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD Radeon Dual Graphics, ASUS Network iControl, Disk Unlocker, AMD Turbo CORE 3.0 technology, AMD Memory Profile (AMP) support, ASUS 5X PROTECTION, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O |
Internal Interfaces | 4 x USB 2.0 - header; 1 x audio - header; 1 x serial - header; 1 x SPDIF out - header; 1 x parallel - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 2.13 GHz; 1.87 GHz; 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-2133/PC3-17000; DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | A55BM-E |
Network Controller | Realtek RTL8111G |
Number of Memory Slots | 2 |
Number of PCI Express x1 Slots | 1 |
Number of PCI Express x16 Slots | 1 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 3 |
Onboard Audio Header | Yes |
Onboard Parallel Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 microphone; 4 onboard USB 2.0; 2 PS/2; 4 USB 2.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | Socket FM2+ |
Processor Supported | A-Series; Athlon; Sempron |
PS/2 Port | Yes |
quantity | 1 |
RAID Levels | 0; 1; 1+0; JBOD |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887-VD |
Storage Interfaces | SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / JBOD |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 4 |
Total Number of PCI Express Slots | 2 |
Total Number of USB Ports | 4 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
Weight (Approximate) | 3 lb |
What's Included | A55BM-E Desktop Motherboard; Support Disc; User's Manual; I/O Shield; 2 x SATA 3Gb/s Cable(s) |
