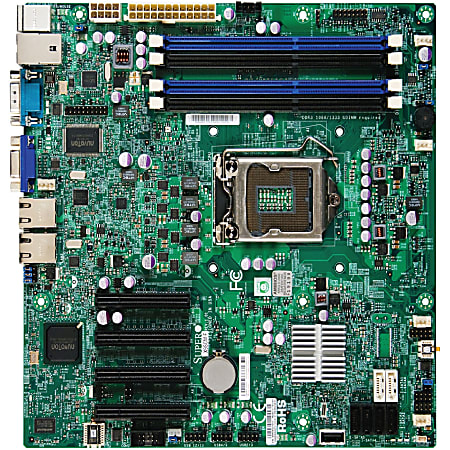

Supermicro X9SCM-F Server Motherboard - Intel Chipset - Socket H2 LGA-1155

Name: Supermicro X9SCM-F Server Motherboard - Intel Chipset - Socket H2 LGA-1155
Brand: Supermicro
SKU: 672435
Price: 206.99 USD
Availability: InStock

1 / 1

Description

With features that include support for PCI-E 2.0 and integrated IPMI 2.0 support, this board delivers high performance for 1 U form factor.

Specs

Specifications

Item #	672435
Manufacturer #	MBD-X9SCM-F-O
64-bit Processing	Yes
BIOS Features	ACPI 1.0 support, DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support, IPMI support
BIOS Type	AMI
brand name	Supermicro
Bus Clock	1600 MHz, 1333 MHz
Buttons & Keys	Reset; Power
Chipset Manufacturer	Intel
Compatible Processors	Pentium, Celeron, Core i3, Xeon E3-1200 series
controller type	Serial ATA/150; Serial ATA/300
depth	9.6 in.
form factor	Micro ATX
Gigabit Ethernet	Yes
Graphics Controller	Matrox G200
Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200eW
Hardware Features	Diagnostic LEDs, chassis intrusion detection, WatchDog Timer
Hardware Monitoring	CPU core temperature, chassis temperature, CPU overheating protection
Internal Interfaces	6 x USB 2.0 - header; 1 x serial - header; 1 x USB 2.0 - Type A
manufacturer	Supermicro Computer, Inc
Max Processors Qty	1
Max Size	32 GB
Maximum Memory	32 GB
Memory Form Factor	DIMM
Memory Speed Supported	1.33 GHz; 1.07 GHz; 800 MHz
Memory Standard	DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400
Memory Technology	DDR3 SDRAM
model	X9SCM-F
Network Controller	Intel 82574L / Intel 82579LM
Number of Memory Slots	4
Number of PCI Express x4 Slots	2
Number of PCI Express x8 Slots	2
Number of SATA Interfaces	6
Number of Total Expansion Slots	4
Onboard LEDs Header	Yes
Onboard Serial Header	Yes
Onboard Video	CPU Dependent Video
PCI Express Standard	PCI Express 2.0
ports	2 Ethernet (RJ-45); 2 PS/2; 1 serial; 2 USB 2.0; 1 VGA 15-pin D-sub
Power Supply Supported	ATX
Processor Socket	LGA1155 Socket
Processor Supported	Core i3; Xeon; Pentium Dual-core; Celeron Dual-Core
Processor Technology	Turbo Boost Technology; Hyper-Threading Technology; Virtualization Technology; Enhanced SpeedStep Technology; Trusted Execution Technology
PS/2 Port	Yes
RAID Levels	0; 1; 5; 1+0
RAID Supported	Yes
Registered or Buffered	Unbuffered
Storage Interfaces	SATA-600 -connectors: 2 x 7pin Serial ATA - 2 devices - RAID 0 / RAID 1; SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5
Supported RAM Integrity Check	ECC
Total Number of Onboard USB Ports	7
Total Number of PCI Express Slots	4
Total Number of USB Ports	2
Total Processor Supported	1
What's Included	X9SCM-F Server Motherboard; 1 x Supermicro Mainboard; 6 x Sata Cables; 1 x I/O Shield; 1 x Supermicro CD Containing Drivers And Utilities; 1 x User's Manual
