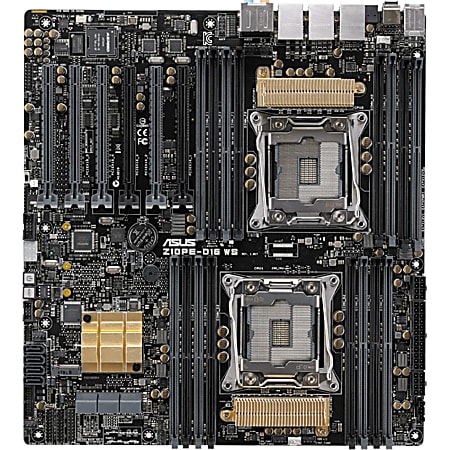

Asus Z10PE-D16 WS Workstation Motherboard - Intel Chipset - Socket LGA 2011-v3
1 / 1
$540.99/each
Description
ASUS Z10PE-D16 WS couples innovative thinking with premium components to deliver industry-leading power efficiency. It is carefully engineered with Beat Thermal Chokes II made of highly conductive and efficient design for minimal-loss power delivery and integrated Dr. MOS MOSFET that both saves space and reduces operating temperatures. For the latest workstation motherboard, ASUS introduce the industry's most durable 12K solid capacitors, and exclusive ASUS ProCool power connectors. Z10PE-D16 WS is built to stay cool under pressure - and boosts performance, power efficiency and product longevity into extreme levels!
Specifications
Product Specifications
Item # | 680357 |
Manufacturer # | Z10PE-D16 WS |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 3.0 support, USB BIOS Flashback, UEFI BIOS, SMBIOS 2.6.1 support, IPMI 2.0 support |
brand name | ASUS |
Bus Clock | 2400 MHz, 1600 MHz, 1866 MHz, 2133 MHz |
Buttons & Keys | Power; Reset; CMOS Clear; Dr. Power Switch |
Chipset Manufacturer | Intel |
Compatible Processors | Xeon E5-2600 v3 series, Xeon E5-1600 v3 series, Xeon E5-2600 v4 series, Xeon E5-1600 v4 series |
controller type | Serial ATA/600 |
Dedicated Video Memory | 32 MB |
depth | 13 in. |
form factor | SSI EEB |
Gigabit Ethernet | Yes |
Graphics Controller | ASPEED AST2400 |
Graphics Controller Manufacturer | ASPEED |
Graphics Controller Memory | 32 MB |
Graphics Controller Model | AST2400 |
Graphics Memory Accessibility | Shared |
Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS Q-Shield, NVIDIA 3-way SLI Technology Support, Loss-less content protection technology, 7 Phase Power Design, Fanless Design Heat-pipe, Q-Code, AMD Quad CrossFireX technology support, Onboard Button, ASUS USB Charger+, ASUS 2 Phase DRAM Power Design, ASUS Dr.Power, Preboot eXecution Environment (PXE), ProCool Power Connector |
Internal Interfaces | 2 x USB 2.0 - header; 2 x serial - header; 2 x USB 3.0 - header; 1 x VGA - header; 1 x audio - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 2 |
Max Size | 1 TB |
Maximum Memory | 1 TB |
Memory Form Factor | DIMM; RDIMM; LRDIMM |
Memory Speed Supported | 2.13 GHz; 1.87 GHz; 1.60 GHz |
Memory Standard | DDR4-1866/PC4-14900; DDR4-1600/PC4-12800; DDR4-2133/PC4-17000 |
Memory Technology | DDR4 SDRAM |
model | Z10PE-D16 WS |
Network Controller | Intel I210-AT |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 16 |
Number of PCI Express x16 Slots | 6 |
Number of SATA Interfaces | 10 |
Number of Total Expansion Slots | 6 |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | On-board Video Chipset |
PCI Express Standard | PCI Express 3.0 |
ports | 1 audio line in; 1 audio line out; 3 Ethernet (RJ-45); 1 microphone; 2 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 4 USB 2.0; 4 USB 3.0 |
Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
Power Supply Supported | EATX12V |
Processor Socket | LGA2011-v3 Socket |
Processor Supported | Xeon |
PS/2 Port | Yes |
RAID Levels | 0; 1; 5; 10 |
RAID Supported | Yes |
Registered or Buffered | Registered, Load-Reduced, Non-Volatile |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC1150 |
Storage Interfaces | SATA-600 -connectors: 10 x 7pin SATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | ECC |
Total Number of Onboard USB Ports | 4 |
Total Number of PCI Express Slots | 6 |
Total Number of USB Ports | 8 |
Total Processor Supported | 2 |
What's Included | Z10PE-D16 Workstation Motherboard; I/O Shield; 1 x COM port cable(s); 10 x SATA 6Gb/s Cable(s); 1 x Supporting DVD; 1 x 3-Way SLI Bridge(s); 1 x SLI Bridge(s); 1 x 2-port USB 2.0 Module(s); 1 x VGA bracket(s); 1 x SCD; 1 x ASWM Enterprise SDVD; 1 x ASMB8 Support DVD; Support Disc |
