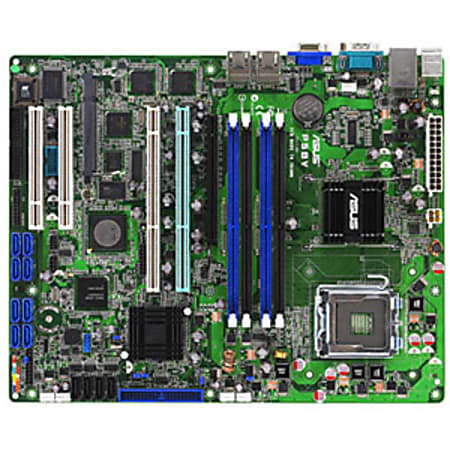

Asus P5BV/SAS Server Motherboard - Intel Chipset - Socket T LGA-775

Name: Asus P5BV/SAS Server Motherboard - Intel Chipset - Socket T LGA-775
Brand: ASUS
SKU: 684489
Price: 319.99 USD
Availability: InStock

1 / 1

Description

ASUS new platform sever board - the P5BV/SAS supports the 45nm Multi-Core Intel Xeon processor at FSB1333MHz based on the Intel 3200 MCH, features up to 8GB DDR2 800/667 memory capacity and various expansion choices.

Specs

Specifications

Item #	684489
Manufacturer #	P5BV/SAS
64-bit Processing	Yes
Additional Connectors (Optional)	2 x USB 2.0
Additional Information	ASUS Features:ASWM2.0; Smart Fan I; Rack Ready (Rack and Pedestal dual use); BIOS Features:AMI BIOS; 8 MB Flash ROM; PnP; DMI; SMBIOS 2.5; WfM2.0; ACPI 2.0a
BIOS Features	DMI support, WfM 2.0 support, ACPI 2.0a support, SMBIOS 2.5 support
BIOS Type	AMI
brand name	ASUS
Bus Clock	800 MHz, 667 MHz
Chipset Manufacturer	Intel
Chipset Model	3200
Compatible Processors	Core 2 Duo, Dual-Core Xeon 3000 series, Quad-Core Xeon 3200 series
controller type	Floppy Controller; Serial Attached SCSI (SAS); Serial ATA/300; Ultra ATA/100 (ATA-6)
Dedicated Video Memory	32 MB DDR2 SDRAM
depth	9.6 in.
form factor	Atx
Front Side Bus	1333 MHz; 1066 MHz; 800 MHz
Gigabit Ethernet	Yes
Graphics Controller	XGI Volari Z9s
Graphics Controller Manufacturer	XGI
Graphics Controller Memory	32 MB
Graphics Controller Model	Z9s
Hardware Features	Chassis intrusion detection, CrashFree BIOS 2, CrashFree BIOS 3, ASUS Smart Fan
Internal Interfaces	1 x floppy
manufacturer	ASUS COMPUTER INTERNATIONAL
Max Bus Speed	1333 MHz
Max Processors Qty	1
Max Size	8 GB
Maximum Memory	8 GB
Memory Speed Supported	800 MHz; 667 MHz
Memory Standard	DDR2-800/PC2-6400; DDR2-667/PC2-5300
Memory Technology	DDR2 SDRAM
model	P5BV/SAS
Network Controller	Broadcom BCM5721
Number of IDE Interfaces	1
Number of Memory Slots	4
Number of PCI Express x16 Slots	1
Number of PCI Slots	2
Number of PCI-X Slots	2
Number of SAS Interfaces	8
Number of SATA Interfaces	4
Number of Total Expansion Slots	6
Onboard LEDs Header	Yes
Onboard Video	On-board Video Chipset
ports	1 Ethernet (RJ-45); 1 serial; 4 USB 2.0; 1 VGA 15-pin D-sub
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Processor Socket	LGA775 Socket
Processor Supported	Celeron; Core 2 Duo; Xeon Dual-Core; Core 2 Extreme; Core 2 Quad; Pentium 4; Pentium D; Pentium Dual-core; Pentium Extreme Edition; Xeon Quad-core
Processor Technology	Enhanced SpeedStep Technology
RAID Features	Intel Matrix RAID Technology
Registered or Buffered	Unbuffered
Storage Interfaces	Intel ICH7R: ATA-100 -connectors: 1 x 40pin IDC - 2 devices; Intel ICH7R: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5; LSI Logic LSISAS1068: SAS - 8 devices - RAID 0 / RAID 1 / RAID 1E
Supported RAM Integrity Check	Non-ECC, ECC
Total Number of Onboard USB Ports	1
Total Number of PCI Express Slots	1
Total Number of USB Ports	4
Total Processor Supported	1
warranty length	3-year limited
