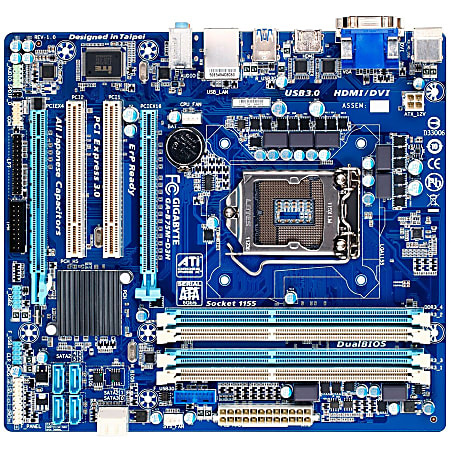

Sign up for Gigabyte Ultra Durable 4 Classic GA-B75M-D3H Desktop Motherboard - Intel Chipset - Socket H2 LGA-1155
1 / 1
$79.09/each
Description
Gigabyte motherboard boasts SuperSpeed USB 3.0 technology made possible through an additional onboard host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.Gigabyte motherboard features a 3x USB power boost, delivering greater compatibility and extra power for USB devices. Gigabyte's unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
Specifications
Product Specifications
| Item # | 692308 |
| Manufacturer # | GA-B75M-D3H |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| BIOS Type | AMI |
| brand name | Gigabyte |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz |
| Chipset Manufacturer | Intel |
| Compatible Processors | Celeron, Core i5, Core i3, Core i7, Pentium G600 series, Pentium G800 series |
| controller type | Serial ATA/300; Serial ATA/600 |
| depth | 8.7 in. |
| DVI | Yes |
| form factor | Micro ATX |
| Gigabit Ethernet | Yes |
| Hardware Features | DualBIOS, Q-Flash, AutoGreen, 3x USB Power Boost, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Ultra Durable 4 Classic, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| HDMI | Yes |
| Internal Interfaces | 1 x audio; 1 x SPDIF out; 2 x USB 3.0; 4 x USB 2.0; 1 x serial; 1 x parallel |
| manufacturer | GIGABYTE Technology, Inc |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | GA-B75M-D3H |
| Number of Memory Slots | 4 |
| Number of PCI Express x16 Slots | 2 |
| Number of PCI Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 4 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard Parallel Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 4 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Power Supply Supported | EPS12V |
| Processor Socket | LGA1155 Socket |
| Processor Supported | Core i5; Core i7; Core i3; Pentium Dual-core; Celeron Dual-Core |
| Processor Technology | Smart Response Technology |
| Product Line | Ultra Durable 4 Classic |
| PS/2 Port | Yes |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC887 |
| Storage Interfaces | SATA-600 -connectors: 1 x 7pin Serial ATA - 1 devices; SATA-300 -connectors: 5 x 7pin SATA - 5 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 6 |
| Total Number of PCI Express Slots | 2 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
| What's Included | Ultra Durable 4 Classic GA-B75M-D3H Desktop Motherboard; Bundle Software |
