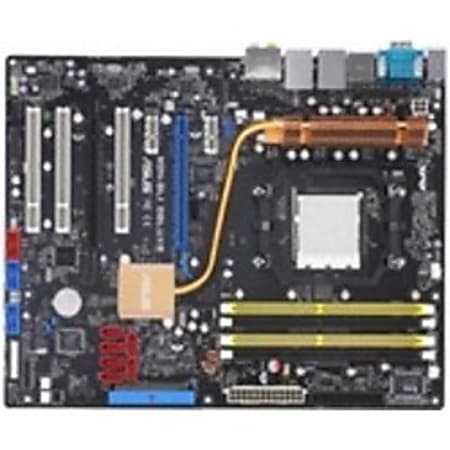

Sign up for ASUS M2N-SLI Deluxe AiLifestyle Series - ATX - nForce 570 SLI - Socket AM2 - Motherboard
1 / 1
$157.95/each
Description
AI Lifestyle Series motherboards bring lifestyle and personal computing together. They provide better system performance for graphics-intensive applications such as 3D games and deliver cutting-edge audio features that dramatically enhance the quality of voice signal. Thoughtful design further allows quick and easy system setup. To create a peaceful environment, several new and improved innovations are included to reduce noise and temperature. Don't change your way of life for a computer. Instead let the ASUS Lifestyle Series improve the quality of your life. The M2N-SLI Deluxe supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology.
Specifications
Product Specifications
| Item # | 699810 |
| Manufacturer # | S5882521 |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| form factor | Atx |
| depth | 9.6 in |
| Compatible Processors | athlon 64, sempron, athlon 64 fx, athlon 64 x2 |
| 64-bit processors compatibility | yes |
| Processor Socket | Socket AM2 |
| multi-core support | dual-core |
| Chipset Type | nvidia nforce 570 sli |
| Max Bus Speed | 1000 MHz |
| BIOS Type | Award |
| Storage Controller | ata-133, serial ata-300 (raid) |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Installed Qty (Max Supported) | 0 ( 1 ) |
| supported ram technology | ddr2 sdram |
| Supported RAM Integrity Check | Non-ECC, ECC |
| RAM Installed ( Max ) | 0 mb / 8 gb (max) |
| supported ram speed | pc2-4300, pc2-6400, pc2-5300 |
| memory type | unbuffered, two ddr channels |
| audio formats supported | sound card |
| Audio Codec | ad1988b |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | Plug and Play, RoHS |
| networking | network adapter - ethernet, fast ethernet, gigabit ethernet |
| BIOS Features | dmi 2.0 support, wfm 2.0 support, smbios 2.3 support, asus ez flash 2, asus mylogo3, asus o.c. profile |
| Manual Settings | cpu frequency, processor core voltage, memory voltage, fsb ratio (cpu:memory), pci express x16 slot frequency |
| Sleep / Wake Up | Wake on LAN (WOL), wake on ring (WOR) |
| Hardware Features | chassis intrusion detection, c.p.r. (cpu parameter recall), amd cool 'n' quiet technology, asus ai nos (non-delay overclocking system), asus sata on the go, heat pipe chipset cooling, nvidia sli technology support, asus ai gear, asus ai nap, asus ai clock |
| Expansion Slot(s) | 1 processor - socket am2 ª 4 memory - dimm 240-pin ª 2 pci express x16 ( sli: x8, x8 mode; single card: x16, x8 mode ) ª 2 pci express x1 ª 3 pci |
| Storage Interfaces | ata-133 - connector(s): 1 x 40pin idc ª serial ata-300 - connector(s): 6 x 7pin serial ata - raid 0 / raid 1 / raid 0+1 / raid 5 / jbod ª serial ata-300 - connector(s): 1 x 7pin serial ata, 1 x 7pin external sata - raid 0 / raid 1 / jbod |
| data input method | 1 x keyboard - generic - 6 pin mini-din (ps/2 style) ª 1 x mouse - generic - 6 pin mini-din (ps/2 style) ª 1 x storage - floppy interface - 34 pin idc ª 1 x serial - rs-232 - 9 pin d-sub (db-9) ª 2 x network - ethernet 10base-t/100base-tx/1000base-t - rj- |
| Additional Connectors (Optional) | 1 x ieee 1394 (firewire), 6 x hi-speed usb |
| cable type included | 1 x ide cable ª 6 x serial ata cable ª 3 x serial ata power adapter ª 1 x usb panel ª 1 x ieee 1394 panel ª 1 x floppy cable |
| software included | drivers & utilities, asus live update, asus pc probe 2, asus ai booster |
$157.95/each
