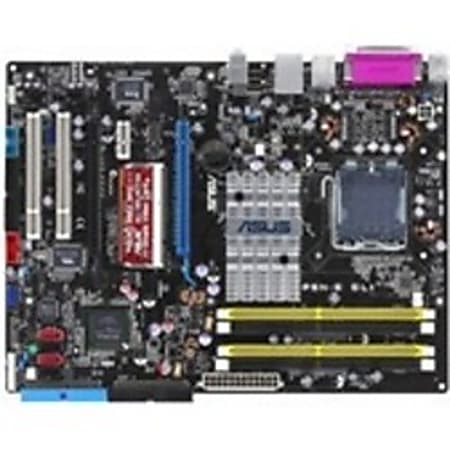

Sign up for ASUS P5N-E SLI - ATX - nForce 650i SLI - LGA775 Socket - Motherboard
1 / 1
$135.95/each
Description
This motherboard supports the latest Intel Quad-core processors in LGA775 package. It's excellent for multi-tasking, multi-media and enthusiastic gamers with 1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPUs in the world. NVIDIA SLI (Scalable Link Interface) takes advantage of the increased bandwidth of the PCI Express bus architecture and features intelligent hardware and software that allows two GPUs to efficiently work together to deliver earth-shattering, scalable performance. For some applications nearly 2X performance! The NVIDIA nForce 650i SLI chipset supports the NVIDIA Scalable Link Interface (SLI) technology that allows two graphics processing units (GPUs) in a single system. It is a highly integrated, high-performance, cost-effective processor.
Specifications
Product Specifications
| Item # | 699930 |
| Manufacturer # | 699930 |
| manufacturer | ASUS COMPUTER INTERNATIONAL |
| form factor | Atx |
| depth | 9 in |
| Compatible Processors | pentium 4, celeron d, pentium d, core 2 duo, core 2 extreme, core 2 quad |
| 64-bit processors compatibility | yes |
| Processor Socket | LGA775 Socket |
| multi-core support | dual-core / quad-core |
| Chipset Type | nvidia nforce 650i sli |
| Max Bus Speed | 1333 MHz |
| BIOS Type | Award |
| Storage Controller | ata-133, serial ata-300 (raid), esata port |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Installed Qty (Max Supported) | 0 ( 1 ) |
| supported ram technology | ddr ii sdram |
| Supported RAM Integrity Check | Non-ECC |
| RAM Installed ( Max ) | 0 mb / 8 gb (max) |
| supported ram speed | pc2-4300, pc2-6400, pc2-5300 |
| memory type | unbuffered, two ddr channels |
| audio formats supported | sound card |
| Audio Codec | Realtek ALC883 |
| Sound Output Mode | 5.1 channel surround |
| networking | network adapter - marvell alaska 88e1116 - ethernet, fast ethernet, gigabit ethernet |
| BIOS Features | dmi 2.0 support, wfm 2.0 support, smbios 2.3 support, hyper-threading technology, asus ez flash 2, asus o.c. profile |
| Manual Settings | cpu frequency, processor core voltage, memory voltage, pci express x16 slot frequency, chipset voltage |
| Sleep / Wake Up | keyboard wake up, wake on lan (wol), mouse wake up, wake on usb port, wake on ring (wor) |
| Hardware Features | chassis intrusion detection, c.p.r. (cpu parameter recall), crashfree bios 2, asus sata on the go, heat pipe chipset cooling, nvidia sli technology support, asus q-connector |
| Expansion Slot(s) | 1 processor - lga775 socket ª 4 memory - dimm 240-pin ª 2 pci express x16 ( sli: x8, x8 mode; single card: x16, x1 mode ) ª 1 pci express x1 ª 2 pci |
| Storage Interfaces | ata-133 - connector(s): 2 x 40pin idc - 4 device(s) ª serial ata-300 - connector(s): 4 x 7pin serial ata - 4 device(s) - raid 0 / raid 1 / raid 0+1 / raid 5 / jbod ª jmicron jmb360 : serial ata-300 - connector(s): 1 x 7pin external sata |
| data input method | 1 x audio - line-in - 4 pin mpc ª 1 x storage - floppy interface - 34 pin idc ª 1 x parallel - ieee 1284 (epp/ecp) - 25 pin d-sub (db-25) ª 1 x ieee 1394 (firewire) - 6 pin firewire ª 1 x audio - spdif output - rca ª 1 x mouse - generic - 6 pin mini-din ( |
| Additional Connectors (Optional) | 2 x hi-speed usb, 1 x ieee 1394 (firewire) |
| cable type included | 1 x floppy cable ª 2 x ide cable ª 1 x sli bridge ª 1 x usb panel ª serial ata cable |
| software included | drivers & utilities, asus live update, asus pc probe 2 |
| Compliant Standards | Plug and Play, RoHS |
$135.95/each
