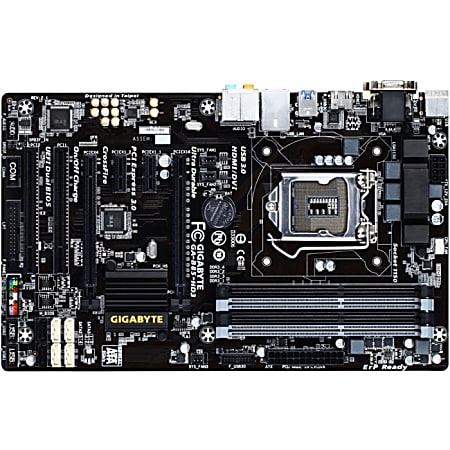

Gigabyte GA-B85-HD3 Desktop Motherboard - Intel B85 Express Chipset - Socket H3 LGA-1150
1 / 1
$89.99/each
Description
Gigabyte 8 series motherboard supports the Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, Gigabyte 8 series motherboards are in a class of their own.
Specifications
Product Specifications
| Item # | 707500 |
| Manufacturer # | GA-B85-HD3 |
| Number of SATA Interfaces | 6 |
| Number of PS/2 Ports | 1 |
| Hardware Features | DualBIOS, Q-Flash, Intel Extreme Memory Profile (XMP) support, On/Off Charge, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Small Business Advantage support |
| Power Supply Supported | ATX12V |
| Multi GPU Supported | CrossFire |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz |
| Product Series | 8 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Number of Network (RJ-45) Ports | 1 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 2 x USB 3.0 ¦ 4 x USB 2.0 ¦ 1 x SPDIF out - header ¦ 1 x audio ¦ 1 x serial - header ¦ 1 x SPDIF in - header ¦ 1 x parallel - header |
| Graphics Controller Manufacturer | Intel |
| Onboard Parallel Header | Yes |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices ¦ SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 4 |
| Total Processor Supported | 1 |
| Graphics Memory Accessibility | Shared |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz |
| VGA | Yes |
| Max Processors Qty | 1 |
| brand name | Gigabyte |
| Audio Channels | 7.1 |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| Number of USB 2.0 Ports | 4 |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | LGA1150 Socket |
| Sound Controller Manufacturer | Realtek |
| Chipset Model | B85 Express |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| Number of PCI Slots | 2 |
| Total Number of Onboard USB Ports | 6 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| HDMI | Yes |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| Total Number of USB Ports | 6 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Audio Header | Yes |
| Number of Memory Slots | 4 |
| Sound Controller Model | ALC892 |
| depth | 7.5 in. |
| Product Name | Ultra Durable 4 Plus Series 8 GA-B85-HD3 (rev. 2.1) Desktop Motherboard |
| Audio Codec | Realtek ALC892 |
| manufacturer | GIGABYTE Technology, Inc |
| Audio Line Out | Yes |
| Maximum Memory | 32 GB |
| Max Size | 32 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/600; Serial ATA/300 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Number of Total Expansion Slots | 6 |
| Chipset Manufacturer | Intel |
| Memory Technology | DDR3 SDRAM |
| form factor | Atx |
| Graphics Controller Memory | 1 GB |
| Number of HDMI Outputs | 1 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| Onboard S/PDIF Header | Yes |
| model name | GA-B85-HD3 |
| UPC | 818313017208 |
