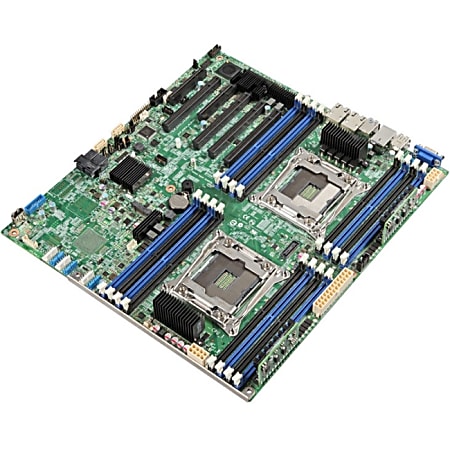

Intel S2600CWTS Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 1 Pack

Name: Intel S2600CWTS Server Motherboard - Intel Chipset - Socket LGA 2011-v3 - 1 Pack
Brand: Intel
SKU: 718973
Price: 773.99 USD
Availability: InStock

1 / 1

Description

A general purpose server board supporting two Intel Xeon processor E5-2600 v3 family up to 145W, 16 DIMMs, two 10 GbE Ethernet ports, and an eight-port LSI 3008 SAS controller

Specs

Specifications

Item #	718973
Manufacturer #	DBS2600CWTS
64-bit Processing	Yes
BIOS Features	IPMI 2.0 support
BIOS Type	Intel
brand name	Intel
Bus Clock	1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz
Chipset Manufacturer	Intel
Compatible Processors	Xeon E5-2600 v3 series (supports CPUs with up to 18 cores, Maximum TDP 145 Watt)
Data Bus Transfer Rate	9.6 GT/s
Dedicated Video Memory	16 MB DDR3 SDRAM
depth	13 in.
form factor	SSI EEB
Graphics Controller Manufacturer	Intel
Graphics Memory Accessibility	Shared
Graphics Memory Technology	DDR4 SDRAM
Hardware Features	Trusted Platform Module (TPM) 1.2, NVIDIA 3-way SLI Technology Support, AMD Quad CrossFireX technology support
Internal Interfaces	1 x USB 2.0 - Type A; 1 x USB 3.0 - header; 1 x serial
manufacturer	INTEL CORPORATION
Max Processors Qty	2
Max Size	2 TB
Maximum Memory	2 TB
Memory Form Factor	DIMM
Memory Speed Supported	2.13 GHz; 1.87 GHz; 1.60 GHz
Memory Standard	DDR4-2133/PC4-17000; DDR4-1866/PC4-14900; DDR4-1600/PC4-12800
Memory Technology	DDR4 SDRAM
model	S2600CWTS
Network Controller	Intel X540
Number of Memory Slots	16
Number of PCI Express x16 Slots	3
Number of PCI Express x4 Slots	1
Number of PCI Express x8 Slots	2
Number of SATA Interfaces	10
Number of Total Expansion Slots	6
Onboard Video	On-board Video Chipset
PCI Express Standard	PCI Express 3.0; PCI Express 2.0
ports	1 10Gb Ethernet; 2 Ethernet (RJ-45); 1 serial
Power Connectors	24-pin main power connector
Processor Socket	LGA2011-v3 Socket
Processor Supported	Xeon
quantity	1
RAID Features	Intel Rapid Storage Technology
RAID Levels	0; 1; 10
RAID Supported	Yes
Registered or Buffered	Registered, Load-Reduced
Storage Interfaces	SATA-600 -connectors: 10 x 7pin SATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10; LSI Logic LSISAS3008: SAS 3 - 8 devices - RAID 0 / RAID 1 / RAID 1E / RAID 10
Supported RAM Integrity Check	ECC
Total Number of PCI Express Slots	6
Total Number of USB Ports	7
Total Processor Supported	2
