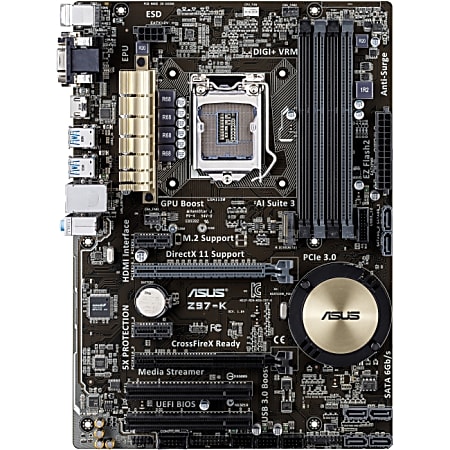

Asus Z97-K/CSM Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150
1 / 1
$129.99/each
Description
?SUS be-the-best ethos underscores the choice of every single component that goes into your ASUS motherboard. ASUS focus relentlessly on quality to ensure long-term system reliability and performance. This motherboard supports Intel 4th, New 4th and 5th Generation Core i7/i5/i3/Pentium /Celeron processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Solid-state capacitors are able to withstand extreme temperatures of up to 105°C for as long as 5,000 hours - that's two-and-a-half (2.5X) times longer than traditional capacitors. This exceptional durability means superb real-world endurance to more typical PC operating temperatures, ensuring that ASUS motherboards continue working longer.
Specifications
Product Specifications
Item # | 772269 |
Manufacturer # | Z97-K/CSM |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC887 |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 2250 MHz (O.C.) |
Chipset Manufacturer | Intel |
Chipset Model | Z97 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 8.6 in. |
DVI | Yes |
Environmental Certification | WEEE; RoHS |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 512 MB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
HDMI | Yes |
Internal Interfaces | 6 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x serial - header; 1 x SPDIF out - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 3.20 GHz (O.C.); 3.10 GHz (O.C.); 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.25 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-3200/PC3-25600 (O.C.); DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2250/PC3-18000 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | Z97-K/CSM |
Multi GPU Supported | CrossFireX |
Network Controller | Realtek RTL8111GR |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 2 |
Number of PCI Slots | 2 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 6 |
Onboard Audio Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
package contents | Z97-K/CSM Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 6Gb/s Cable(s); Support Disc |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 2 PS/2; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
Processor Technology | Quick Sync Video Technology; Turbo Core 2.0 Technology |
PS/2 Port | Yes |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 4 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
