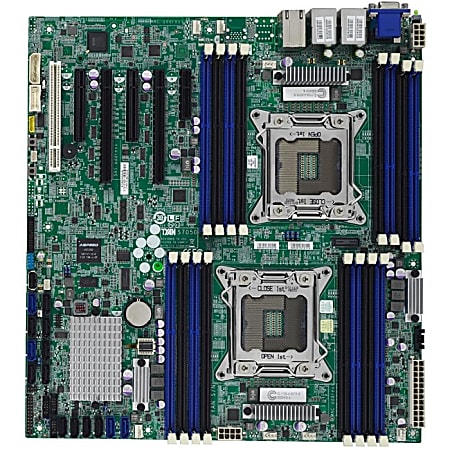

Tyan S7050 Server Motherboard - Intel C602 Chipset - Socket R LGA-2011 - 1 x Retail Pack

Name: Tyan S7050 Server Motherboard - Intel C602 Chipset - Socket R LGA-2011 - 1 x Retail Pack
Brand: Tyan
SKU: 775414
Price: 533.99 USD
Availability: InStock

1 / 1

Description

Specs

Specifications

Item #	775414
Manufacturer #	S7050WGM4NR
64-bit Processing	Yes
brand name	Tyan
Chipset Manufacturer	Intel
Chipset Model	C602
controller type	Serial ATA/300; Serial Attached SCSI (SAS); Serial ATA/600
depth	12 in.
Environmental Certification	RoHS-6; China RoHS; WEEE
form factor	SSI EEB
Gigabit Ethernet	Yes
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2300
manufacturer	Tyan Computer Corp
Maximum Memory	512 GB
Memory Form Factor	DIMM; UDIMM; RDIMM; LRDIMM
Memory Speed Supported	1.60 GHz; 1.33 GHz; 1.07 GHz; 800 MHz
Memory Standard	DDR3-1333/PC3-10600; DDR3-1600/PC3-12800; DDR3-1066/PC3-8500; DDR3-800/PC3-6400
Memory Technology	DDR3 SDRAM
model	S7050
Number of Memory Slots	16
Number of PCI Express x16 Slots	2
Number of PCI Express x4 Slots	1
Number of PCI Express x8 Slots	2
Number of PCI Slots	1
Number of SAS Interfaces	8
Number of SATA Interfaces	6
Number of Total Expansion Slots	6
Onboard LEDs Header	Yes
Onboard Serial Header	Yes
Onboard Video	On-board Video Chipset
package contents	S7050 Server Motherboard; 1 x User's Manual; 1 x Quick Ref. Guide; 1 x Installation CD; 1 x I/O Shield; 6 x SATA Signal Cables; 8 x SAS Cables
Package Type	Retail
ports	4 Ethernet (RJ-45); 3 onboard USB 2.0; 1 serial; 4 USB 2.0; 1 VGA 15-pin D-sub
Power Supply Supported	ATX12V
Processor Socket	Socket R LGA-2011
Processor Supported	Xeon Octa-core
quantity	1
QuickPath Interconnect	8 GT/s
RAID Levels	0; 1; 1+0; 5
RAID Supported	Yes
Total Number of Onboard USB Ports	3
Total Number of PCI Express Slots	5
Total Number of USB Ports	4
Total Processor Supported	2
warranty length	3-year limited
