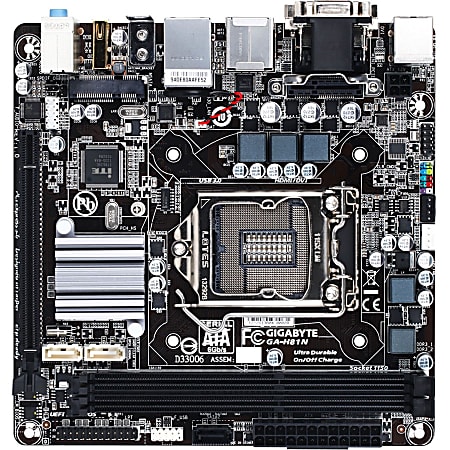

Gigabyte Ultra Durable 4 Plus GA-H81N Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150
1 / 1
$79.99/each
Description
GIGABYTE 8 series motherboards support the Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, GIGABYTE 8 series motherboards are in a class of their own.The latest Intel 8 series platform offers significant improvements in performance and power consumption with the Intel Core processors and Intel H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel processor graphics provide significantly higher frame rates in the latest DX11 3D game titles.
Specifications
Product Specifications
Item # | 787918 |
Manufacturer # | GA-H81N |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
BIOS Type | AMI |
brand name | Gigabyte |
Bus Clock | 1600 MHz, 1333 MHz |
Chipset Manufacturer | Intel |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600; Serial ATA/300; mSATA |
depth | 6.7 in. |
DVI | Yes |
form factor | Mini ITX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | DualBIOS, Q-Flash, All-Solid Capacitor motherboard Design, Intel Extreme Memory Profile (XMP) support, On/Off Charge, One Port One Fuse, GIGABYTE 333 Onboard Acceleration, GIGABYTE LAN Optimizer, ESD Protection, Ultra Durable 4 Plus, Clear CMOS Button, GIGABYTE USB DAC-UP |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage |
HDMI | Yes |
Internal Interfaces | 1 x parallel - header; 1 x serial - header; 2 x USB 2.0 - header; 1 x audio - header; 1 x SPDIF out - header |
manufacturer | GIGABYTE Technology, Inc |
Max Processors Qty | 1 |
Max Size | 16 GB |
Maximum Memory | 16 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
Memory Technology | DDR3 SDRAM |
model | GA-H81N |
Number of Memory Slots | 2 |
Number of Mini PCI Express Slots | 1 |
Number of mSATA Interfaces | 1 |
Number of PCI Express x16 Slots | 1 |
Number of SATA Interfaces | 3 |
Number of Total Expansion Slots | 2 |
Onboard Audio Header | Yes |
Onboard Parallel Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI in; 1 microphone; 2 onboard USB 2.0; 1 PS/2; 5 USB 2.0; 2 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
Product Line | Ultra Durable 4 Plus |
Product Series | 8 |
PS/2 Port | Yes |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887 |
Storage Interfaces | SATA-600 -connectors: 2 x 7pin SATA, 1 x mSATA - 3 devices; SATA-300 -connectors: 1 x 7pin Serial ATA - 1 devices |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 2 |
Total Number of PCI Express Slots | 1 |
Total Number of USB Ports | 7 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
Weight (Approximate) | 1.99 lb |
$79.99/each
