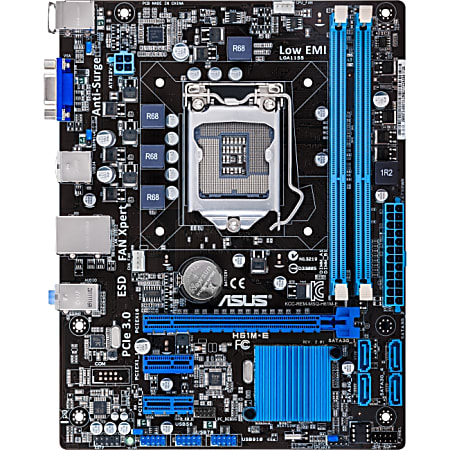

Asus H61M-E Desktop Motherboard - Intel H61(B3) Express Chipset - Socket H2 LGA-1155
1 / 1
$63.99/each
Description
The PCI Express bus standard delivers improved encoding for twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32 GB/s, double the 16 GB/s of PCIe 2.0 (in x16 mode). PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. It's a must-have feature for PC users aiming to improve and optimize graphics performance, as well as have the latest, most future-proof technology.Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.
Specifications
Product Specifications
Item # | 788158 |
Manufacturer # | H61M-E |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC887 |
BIOS Features | DMI 2.0 support, WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, ASUS EFI BIOS, UEFI BIOS, SMBIOS 2.7 support |
brand name | ASUS |
Bus Clock | 2200 MHz, 2000 MHz, 1600 MHz, 1333 MHz, 1066 MHz, 1866 MHz, 2133 MHz |
Chipset Manufacturer | Intel |
Chipset Model | H61(B3) Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 series |
controller type | Serial ATA/300 |
depth | 6.9 in. |
Environmental Certification | RoHS; WEEE |
form factor | Micro ATX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | ASUS Anti-Surge Protection, ASUS EZ DIY, CrashFree BIOS 3, All-Solid Capacitor motherboard Design, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Conductive Polymer Capacitors |
Internal Interfaces | 6 x USB 2.0; 1 x audio |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 16 GB |
Maximum Memory | 16 GB |
Memory Form Factor | DIMM; UDIMM |
Memory Speed Supported | 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-2133/PC3-17000 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | H61M-E |
Network Controller | Realtek RTL8111F |
Number of Memory Slots | 2 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 1 |
Number of SATA Interfaces | 4 |
Number of Total Expansion Slots | 3 |
Onboard Audio Header | Yes |
Onboard LEDs Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Video | CPU Dependent Video |
package contents | H61M-E Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 3Gb/s cable(s); Support Disc |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 Ethernet (RJ-45); 1 microphone; 6 onboard USB 2.0; 2 PS/2; 4 USB 2.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1155 Socket |
Processor Supported | Core i5; Core i3; Core i7; Pentium; Celeron; Xeon |
Processor Technology | Turbo Boost Technology 2.0 |
PS/2 Port | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL) |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC887 |
Storage Interfaces | SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 6 |
Total Number of PCI Express Slots | 3 |
Total Number of USB Ports | 4 |
Total Processor Supported | 1 |
