Item # | 791497 |
Manufacturer # | 2970577 |
64-bit Processing | Yes |
brand name | Tyan |
Buttons & Keys | Power |
Chipset Manufacturer | AMD |
controller type | Serial ATA/300 |
depth | 13 in. |
Environmental Certification | RoHS-6 |
form factor | SSI MEB |
Graphics Controller Manufacturer | ASPEED |
Graphics Controller Memory | 128 MB |
Graphics Controller Model | AST2050 |
HyperTransport Speed | 3 MHz |
manufacturer | Tyan Computer Corp |
Maximum Memory | 256 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 1.33 GHz; 1.07 GHz; 800 MHz |
Memory Standard | DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
Memory Technology | DDR3 SDRAM |

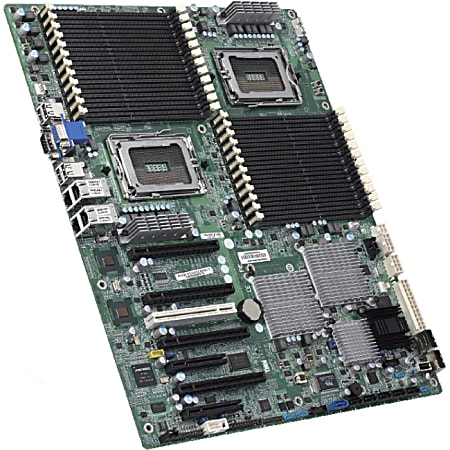

model | S8232 |
Number of Memory Slots | 24 |
Number of PCI Express x16 Slots | 4 |
Number of PCI Express x4 Slots | 2 |
Number of PCI Slots | 1 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 7 |
Onboard LEDs Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | On-board Video Chipset |
Operating Power Consumption | 105 W |
package contents | S8232 Server Motherboard; 1 x User Manual; 1 x Quick Reference Guide; 1 x Installation CD; 1 x IO Shield; 6 x SATA Signals Cables |
Package Type | Retail |
PCI Express Standard | PCI Express 2.0 |
ports | 4 Ethernet (RJ-45); 5 onboard USB 2.0; 1 serial; 4 USB 2.0; 1 VGA 15-pin D-sub |
Power Supply Supported | EPS12V |
Processor Socket | Socket G34 LGA-1944 |
Processor Supported | Opteron |
Processor Technology | HyperTransport 3.0 Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Total Number of Onboard USB Ports | 5 |
Total Number of PCI Express Slots | 6 |
Total Number of USB Ports | 4 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
