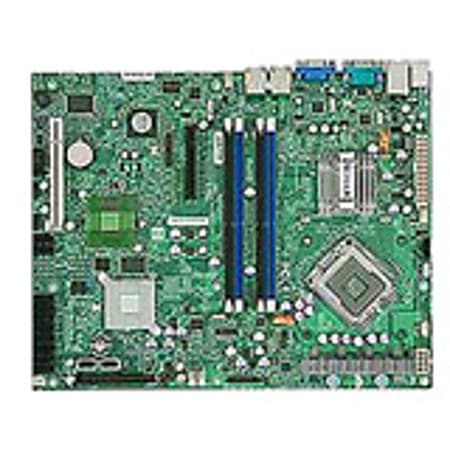

Sign up for Supermicro X7SB3 Server Motherboard - Intel 3210 Chipset - Socket T LGA-775 - Retail Pack
1 / 1
$306.99/each
Description
X7SB3 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance. The Intel 3210 chipset is comprised of two primary components: the Memory Controller Hub (MCH) and the I/O Controller Hub (ICH9). The X7SB3 provides the performance and feature-set required for the mainstream high-performance cluster platform (HPC) market.
Specifications
Product Specifications
| Item # | 801481 |
| Manufacturer # | MBD-X7SB3-O |
| 64-bit Processing | Yes |
| Additional Connectors (Optional) | 4 x USB 2.0 |
| Additional Information | System BIOS:16Mb Flash EEPROM with Phoenix BIOS; Plug and Play (PnP); DMI 2.3 support; PCI 2.2; ACPI 1.0/2.0; SMBIOS 2.3; USB Keyboard Support |
| BIOS Features | ACPI 1.0 support, DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support |
| BIOS Type | Phoenix |
| brand name | Supermicro |
| Bus Clock | 800 MHz, 667 MHz |
| Chipset Manufacturer | Intel |
| Chipset Model | 3210 |
| Compatible Processors | Core 2 Duo, Dual-Core Xeon 3000 series, Core 2 Quad, Pentium Dual Core, Celeron 400 sequence, Quad-Core Xeon 3200 series, Dual-Core Xeon 3100 series, Quad-Core Xeon 3300 series |
| controller type | Floppy Controller; Serial Attached SCSI (SAS); Serial ATA/300 |
| Dedicated Video Memory | 8 MB DDR2 SDRAM |
| depth | 9.6 in. |
| Environmental Certification | RoHS |
| form factor | Atx |
| Front Side Bus | 1333 MHz; 1066 MHz; 800 MHz |
| Gigabit Ethernet | Yes |
| Graphics Controller | Matrox MGA G200 |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Memory | 8 MB |
| Graphics Controller Model | G200eW |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, WatchDog Timer |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, CPU core voltage |
| Internal Interfaces | 1 x floppy |
| manufacturer | Supermicro Computer, Inc |
| Max Bus Speed | 1333 MHz |
| Max Processors Qty | 1 |
| Max Size | 8 GB |
| Maximum Memory | 8 GB |
| Memory Speed Supported | 800 MHz; 667 MHz |
| Memory Standard | DDR2-800/PC2-6400; DDR2-667/PC2-5300 |
| Memory Technology | DDR2 SDRAM |
| model | X7SB3 |
| Network Controller | Intel 82574L |
| Number of Memory Slots | 4 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Slots | 1 |
| Number of SAS Interfaces | 8 |
| Number of SATA Interfaces | 2 |
| Number of Total Expansion Slots | 2 |
| Onboard LEDs Header | Yes |
| Onboard Video | On-board Video Chipset |
| package contents | X7SB3 Server Board; 1 x Motherboard Manual; 1 x Floppy Cable; 6 x SATA Cable (2Ft.); 1 x CD; 1 x I/O Shield for X7SB3 |
| Package Type | Retail |
| ports | 1 Ethernet (RJ-45); 2 PS/2; 1 serial; 2 USB 2.0; 1 VGA 15-pin D-sub |
| Processor Socket | LGA775 Socket |
| Processor Supported | Xeon Quad-core; Xeon Dual-Core; Core 2 Quad; Core 2 Duo; Pentium Dual-core; Celeron |
| Processor Technology | Enhanced SpeedStep Technology |
| PS/2 Port | Yes |
| RAID Levels | 0; 1; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sleep / Wake Up | Keyboard wake up, wake on LAN (WOL), wake on ring (WOR) |
| Storage Interfaces | LSI Logic LSISAS1068E: SAS -connectors: 8 - 8 devices - RAID 0 / RAID 1 / RAID 10; Intel ICH9: SATA-300 -connectors: 2 x 7pin Serial ATA - 2 devices |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Total Number of Onboard USB Ports | 4 |
| Total Number of PCI Express Slots | 1 |
| Total Number of USB Ports | 2 |
| Total Processor Supported | 1 |
