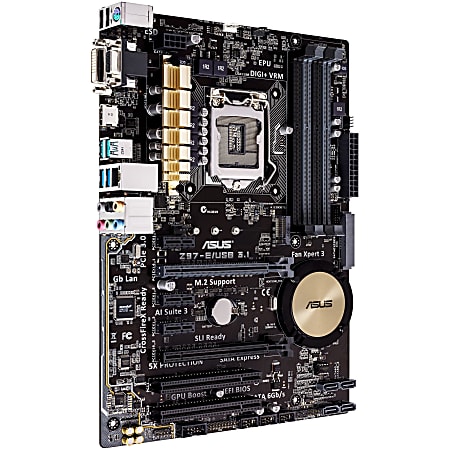

Asus Z97-E/USB3.1 Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150
1 / 1
$158.99/each
Description
A good VRM intelligently delivers CPU power based on actual needs at any given time. ASUS was first with digital power design featuring faster sensing and response to deliver precise CPU power on demand. This great accuracy reduces energy waste and of course improves system stability thanks to more consistent delivery. Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected device. Solid-state capacitors are able to withstand extreme temperatures of up to 105°C for as long as 5,000 hours. This exceptional durability means superb real-world endurance to more typical PC operating temperatures, ensuring that ASUS motherboards continue working longer.ASUS motherboard back I/O panels are made from strong and corrosion-resistant stainless steel, which is bonded with a thin layer of chromium oxide to enhance anti-corrosive properties. Passing 72-hour spray salt endurance tests, ASUS stainless steel back I/O panels have a lifespan that's three times (3X) longer compared to ordinary panels. Crystal Sound 2 makes short work of optimizing audio settings for the way you want to listen, be it gaming, chatting, watching movies or relaxing to your favorite music. Onboard physical shielding, professional engineered design and premium components, result in sound output that has exceptional clarity and fidelity.Fan Xpert 3 is an extremely advanced fan-management tool that puts 4-pin/3-pin CPU and case fan controls in one place. It scans each fan's characteristics and intelligently delivers custom settings for each fan based on the dedicated area temperatures. Fan Xpert 3 supports hardware-level PWM/DC combo mode for both the CPU and case fans. It even has the upgraded ability to reduce the CPU fan speed to below the default minimum, for extra-quiet and power saving operation during light loads.With the USB 3.1 connectivity built in and dual Type-A ports for the very fastest USB data transfers, you'll experience data-transfer speeds of up to 10Gbit/s - or twice as fast USB 3.0. The next-generation standard is completely backward-compatible with your existing USB devices, and you'll be all set for USB 3.1's breakneck speeds. And ASUS-exclusive USB 3.1 Boost technology automatically accelerates USB 3.1 performance even further!
Specifications
Product Specifications
Item # | 847366 |
Manufacturer # | Z97-E/USB 3.1 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
BIOS Features | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, UEFI BIOS, DMI 2.7 support, ACPI 5.0 support, SMBIOS 2.8 support |
BIOS Type | AMI |
brand name | ASUS |
Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 2250 MHz (O.C.) |
Chipset Manufacturer | Intel |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 8.6 in. |
DVI | Yes |
form factor | Atx |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 512 MB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
HDMI | Yes |
Internal Interfaces | 6 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x serial - header; 1 x SPDIF out - header |
manufacturer | ASUS COMPUTER INTERNATIONAL |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 3.20 GHz (O.C.); 3.10 GHz (O.C.); 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.25 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz |
Memory Standard | DDR3-3200/PC3-25600 (O.C.); DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2250/PC3-18000 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3L-10600 |
Memory Technology | DDR3 SDRAM |
model | Z97-E/USB3.1 |
Network Controller | Intel I218V |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 3 |
Number of PCI Express x16 Slots | 2 |
Number of PCI Slots | 2 |
Number of SATA Express Interfaces | 1 |
Number of SATA Interfaces | 4 |
Number of Total Expansion Slots | 7 |
Onboard Audio Header | Yes |
Onboard S/PDIF Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 2 USB 2.0; 2 USB 3.0; 2 USB 3.1; 1 VGA 15-pin D-sub |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
Processor Technology | Smart Response Technology; Turbo Boost Technology 2.0 |
PS/2 Port | Yes |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 10 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC892 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin SATA, 1 x M.2, 1 x SATA Express port - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 5 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
What's Included | Z97-E/USB3.1 Desktop Motherboard; User's Manual; I/O Shield; 2 x SATA 6Gb/s cable(s); Support Disc |
