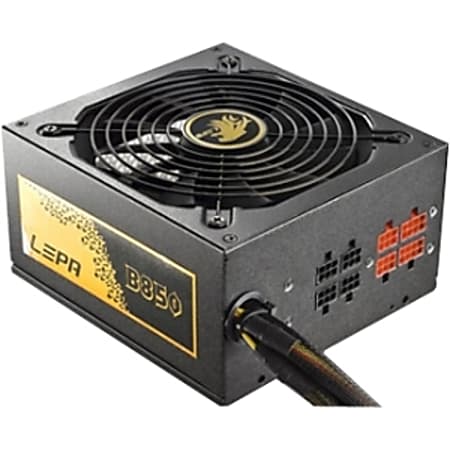

LEPA B850-MA ATX12V & EPS12V Power Supply

1 / 1

Description

80 PLUS Bronze certified with peak 88% efficiency.
High efficiency 5Vsb circuit helps system to meet EU ErP Lot 6 2010 standby low power consumption requirements.
13.5cm fan with intelligent RPM control guarantees cool performance and silent operation.
Active PFC universal switching circuit improves Power Factor value up to 0.99, reducing AC line reactive power loss to minimum level and automatic adopting AC voltage from 100~240V.
8P PCI-E connector supplied supporting extreme graphic cards.
Protected by Over Power, Over Voltage, Over Current, Short-Circuit, and Brown Out protections circuits.
CPU 12V connector rail with > 18A output to support next generation > 6 cores processor structure.
Extending CPU connector cable to 60cm facilitates installation with bottom-mounted-PSU chassis.
SATA power connector with 3.3V rail to support new generation SSD.
Modular design for easy cable management and flexible system upgrade support

Specifications

Item #	865579
Manufacturer #	B850-MA
number of fans	1
Product Series	B
Power Factor Correction (PFC)	Active
Output Voltage	3.3 V DC @ 28 A; 5 V DC @ 30 A; 12 V DC @ 20 A; 12 V DC @ 30 A; -12 V DC @ 800 mA; 5 V DC @ 3 A
ATI CrossFire Supported	Yes
NVIDIA SLI Supported	Yes
Output Power	850 W
Product Name	B850-MA ATX12V & EPS12V Power Supply
Number of +12V Rails	4
manufacturer	LEPA TECHNOLOGY CORPORATION
Input Voltage Range	100 V AC to 240 V AC
Eco-conscious	Helps Save Energy
brand name	LEPA
eco-label/standard	80 Plus Bronze; WEEE; RoHS
protection type	Over Voltage; Over Current; Over Power; Short Circuit; Brownout
Input Voltage	110 V AC; 220 V AC
Input Voltage Type	AC
form factor	Internal
Receptacles	1 x 24-pin ATX Motherboard; 1 x 8-pin EPS12V Motherboard; 1 x 4+4pin ATX12V Motherboard; 4 x 4-pin LP4 Peripheral Device; 1 x 4-pin SP4 Floppy Drive; 10 x Serial ATA; 6 x 6+2pin PCI-E
Modular	Yes
warranty length	2-year limited
model name	B850-MA
Efficiency	88%
