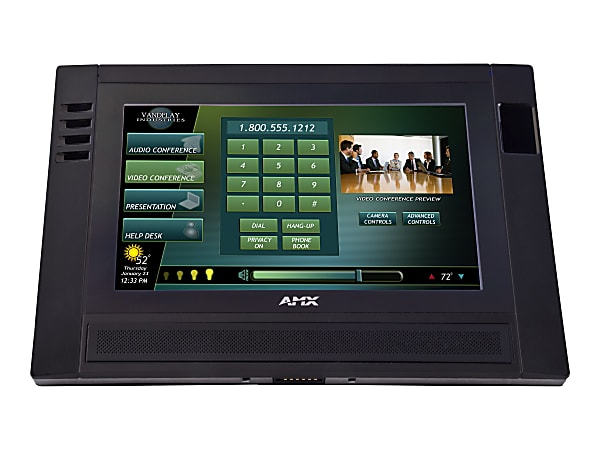

AMX 9" Modero ViewPoint Touch Panel with Intercom - Wired/Wireless

The MVP-9000i redefines touch panel control offering both wireless and wired functionality, new user interface capabilities like gestures and page transitions, a stunning 9" widescreen 24-bit color display, full digital duplex telephone or intercom interface and built-in 802.11a/b/g Wi-Fi card with antenna diversity. The MVP-9000i switches seamlessly to wireless mode when removed from the PoE docking station. Transfer touch panel pages, upgrade the firmware or display photo files using the USB or mini-SD card slot. Available in white or black, the MVP-9000i also features a capacitive navigation pad, 4 programmable buttons, over 1 GB of useable flash memory and supports 5 hours of continuous use and three days of standby time.

Common Applications

Ideal for a wide variety of residential and commercial control and automation applications where flexibility of docked or mobile 802.11a/b/g functionality and extended battery life is desired. This is an ideal solution for extremely noisy wireless environments like MDUs and applications that require telephone/intercom functionality.

Features

• Automatically switches between Ethernet connectivity when docked and Wi-Fi when out of dock
• New user interface capabilities including gesturing and 7 different page transitions
• International Fonts Support - The MVP-9000i provides support for right to left languages such as Arabic, a combination of language styles (right to left, and left to right) can also be used allowing inclusion of Arabic and English on the same screen
• 802.11a/b/g Wi-Fi with antenna diversity for improved wireless reliability and features enhanced wireless security protocol
• Extended battery life - five hours of continuous use and three days of standby time
• Micro-SD and USB stick support for easy file transfers and photo uploads
• VoIP intercom and SIP telephone (requires AMX Gateway) ready
• Cisco Compatible Extensions (CCX) Version 4 certified - CCX V4 certification means the MVP-9000i has been optimized to work with a Cisco wireless LAN infrastructure and that it meets the Wi-Fi alliance WPA/WPA2 specification addressing wireless network security, performance, reliability, diagnostic and network statistics gathering
• 9.0" color active - matrix TFT with 16x9 aspect ratio
• Screen Resolution - 800x480
• Display Colors - 24-bit color depth
• Brightness - 400 nits
• LED backlit display
• Supports full motion JPEG providing at least 24 frames per second
• IPS Technology enables wide viewing angles - 85 degrees in all directions
• Contrast Ratio - 900:1
• Built-in speaker and microphone
• 256 MB mobile DDR SDRAM/2GB SD Flash with 1.1GB of useable space
• USB port and mini-SD card slot for file transfer and photo uploads
• Capacitive navigation pad with up/down/right/left/select
• 4 user-programmable capacitive buttons with on-screen fly out labels
• Supports landscape or portrait mode
• Integrated kickstand and stylus
• Available in black or white
• Versatile placement options including table and wall charging stations or integrated kickstand
• Works with AMXmeetingroom, VisualArchitect and AMXhome
