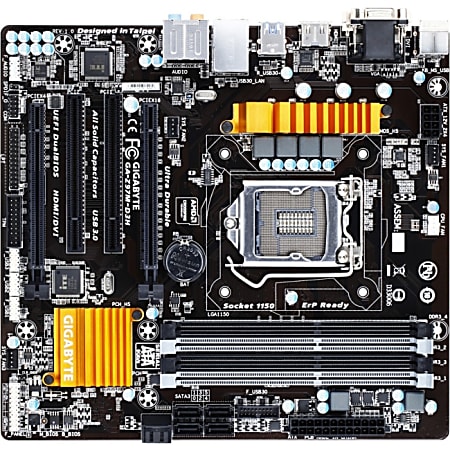

Sign up for Gigabyte Ultra Durable GA-Z97M-D3H Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150
1 / 1
$140.99/each
Description
GIGABYTE GA-Z97M-HD3 motherboards support the latest Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build.
Specifications
Product Specifications
| Item # | 940684 |
| Manufacturer # | GA-Z97M-D3H |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC892 |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| BIOS Type | AMI |
| brand name | Gigabyte |
| Bus Clock | 1600 MHz, 1333 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2500 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 1800 MHz (O.C.), 3000 MHz (O.C.) |
| Chipset Manufacturer | Intel |
| Chipset Model | Z97 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600 |
| depth | 8.9 in. |
| DVI | Yes |
| form factor | Micro ATX |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | Q-Flash, Intel Extreme Memory Profile (XMP) support, On/Off Charge, Intel Smart Response Technology, Fanless Design Heatsink, Ultra Durable, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, GIGABYTE LAN Optimizer, ESD Protection, GIGABYTE Smart Switch |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection |
| HDMI | Yes |
| Internal Interfaces | 6 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x SPDIF out - header; 1 x serial - header; 1 x parallel - header |
| manufacturer | GIGABYTE Technology, Inc |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 3 GHz (O.C.); 2.93 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.50 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.80 GHz (O.C.); 1.60 GHz; 1.33 GHz |
| Memory Standard | DDR3-3000/PC3-24000 (O.C.); DDR3-2933/PC3-23400 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2500/PC3-20000 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1800/PC3-14400 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Memory Technology | DDR3 SDRAM |
| model | GA-Z97M-D3H |
| Multi GPU Supported | CrossFireX |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Number of PCI Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 4 |
| Onboard Audio Header | Yes |
| Onboard Parallel Header | Yes |
| Onboard S/PDIF Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i5; Core i3; Pentium; Celeron; Core i7 |
| Product Line | Ultra Durable |
| Product Series | 9 |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC892 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 8 |
| Total Number of PCI Express Slots | 2 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$140.99/each
