This promotion is for Rewards members only. To take advantage of exclusive offers like these, join Office Depot® OfficeMax® Rewards now!
StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card Item # 950802
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
950802
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description

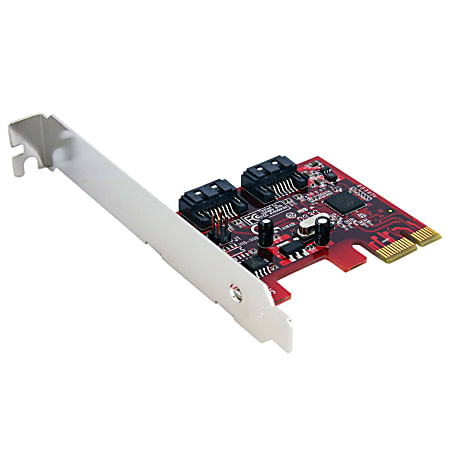

Add two SATA 6Gbps ports for high speed access to large internal storage solutions. The PEXSAT32 2-Port PCI Express SATA 6 Gbps (SATA 3.0) Controller Card offers simple connectivity between a host computer and SATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving.With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs.The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single SATA connection.A dual profile solution, the SATA 3.0 controller card includes a low profile/half-height bracket for installation in slimline or small form factor computer cases.
Product Details
| Item # | 950802 |
| OfficeMax # | 23567524 |
| Manufacturer # | CQ4810 |
| brand name | StarTech |
| Card Height | Dual-profile |
| controller type | Serial ATA/600 |
| depth | 26.7 in. |
| form factor | Plug-in Card |
| height | 8.4 in. |
| Host Interface | PCI Express |
| manufacturer | StarTech.com |
| Platform Supported | PC |
| Total Number of SATA Ports | 2 |
| warranty length | limited lifetime |
| What's Included | 2-port SATA 6 Gbps PCI Express SATA Controller Card; Low profile Bracket |
| width | 25.4 in. |
Customer Reviews
StarTech.com 2 Port SATA 6 Gbps PCI Express SATA Controller Card is rated
out of
5 by
9.
Rated 5 out of
5
by
jack238 from
WIN2016
Installed it in ASUS mobo created a raid-1 volume from two drives.
Had no problem to install and boot Win2016 (ver 2018) with windows drivers coming in iso file
Date published: 2018-09-15
Rated 3 out of
5
by
bdoug from
Limited success
I bought this primarily for use with Linux (debian) but discovered after purchase that debian (and ubuntu) dists are not supported. It does work with Win7 and SUSE but I really don't need that for my application.
Date published: 2018-07-12
Rated 2 out of
5
by
chibimage from
Cannot access card BIOS
Well i bought this thing for a raid controller to raid my 2 ssd hard drives toghether, but the bios wont boot up.... In-fact when I start up my pc, right when the Controller bios shows up, it's just a blank black screen, like it froze or something. I have no idea how to fix it, installed all the drivers, have been working on this for literally 4 days.... I mean it's good for an AHCI and my hard drives work on it, literally just can't use raid, which is the whole purpose of me buying this thing.
Date published: 2017-10-07
Rated 2 out of
5
by
Chris Finch from
No way to monitor RAID health
I bought this a few months ago, and I am disappointed in the Windows software for this product. There is no way to know if the RAID is degraded from Windows. This software should pop up a message or, better yet, send an email when the RAID has been degraded.
Date published: 2017-09-14
Open Popup Window
.jpg)
![slide {0} of {1},zoom in, Add two SATA 6Gbps ports for high speed access to large internal storage solutions]()
![slide {0} of {1},zoom in, Add two SATA 6Gbps ports for high speed access to large internal storage solutions]()
![slide {0} of {1},zoom in, Add two SATA 6Gbps ports for high speed access to large internal storage solutions]()
![slide {0} of {1},zoom in, Add two SATA 6Gbps ports for high speed access to large internal storage solutions]()
![slide {0} of {1},zoom in, Add two SATA 6Gbps ports for high speed access to large internal storage solutions]()
![Simple connectivity]()
![Twice the speed of SATA II (3Gbps)]()
![Ships with a full profile bracket install, low profile included]()
Add two SATA 6Gbps ports for high speed access to large internal storage solutions
- Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backwards compatible with SATA I/II at 1.5/3.0Gbps
- Port Multiplier FIS-based and Command-based switching supported
- Supports RAID 0 and 1 modes
- Compliant with PCI Express 2.0 standards
- Uses existing SATA I/II connectors and cabling
- Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
- Ships with a full profile bracket install, low profile included
- LED headers for HDD activity LED indicators
Media
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Simple connectivity
The PEXSAT32 2-Port PCI Express SATA 6 Gbps (SATA 3.0) Controller Card offers simple connectivity between a host computer and SATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving..jpg)
Twice the speed of SATA II (3Gbps)
With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs..jpg)
Ships with a full profile bracket install, low profile included
The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single SATA connection.Applications
- Add two internal SATA 6Gbps port for connecting SATA rev 3.0 (6Gbps) Hard Drives
- High performance internal SATA storage solution
- Multimedia streaming or video editing
- Perfect for multi-drive internal raid storage solutions
StarTech
