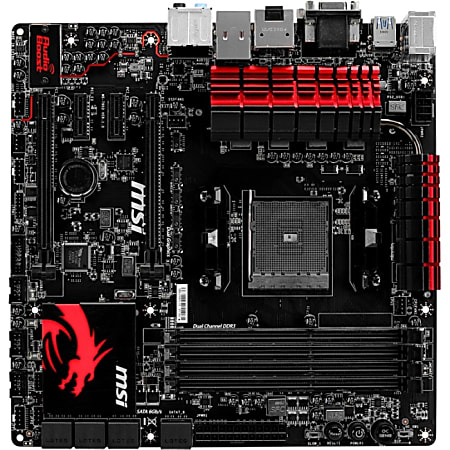

Sign up for MSI A88XM GAMING Desktop Motherboard - AMD Chipset - Socket FM2+
1 / 1
$135.99/each
Description
MSI GAMING motherboards are designed to provide gamers with best-in-class features and technology. Backed by the imposing looks of MSI's Dragon, each motherboard is an engineering masterpiece tailored to gaming perfection.
Specifications
Product Specifications
| Item # | 969394 |
| Manufacturer # | A88XM GAMING |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| BIOS Features | DMI support, M-Flash, MSI ClickBIOS 4 |
| brand name | MSI |
| Bus Clock | 1600 MHz, 1333 MHz, 1866 MHz, 2133 MHz, 2400 MHz (O.C.) |
| Buttons & Keys | OC Genie; Power; Reset |
| Chipset Manufacturer | AMD |
| Compatible Processors | Athlon, A series |
| controller type | Serial ATA/600 |
| depth | 9.6 in. |
| DisplayPort | Yes |
| DVI | Yes |
| form factor | Atx |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Memory | 2 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | Hi-c CAP, AMD Radeon Dual Graphics, Super Ferrite Choke (SFC), AMD CrossFireX technology support, AMD Hybrid CrossFireX technology support, AMD Memory Profile (AMP) support, MSI Military Class IV, Military Class Essentials, OC Genie 4, MSI Fast Boot, MSI Audio Boost, Gold Plated Audio Hardware, MSI Gaming Device Port |
| HDMI | Yes |
| Integrated Processor Cache | No |
| Internal Interfaces | 6 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x serial - header; 1 x audio - header |
| manufacturer | MSI |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 2.40 GHz; 2.13 GHz; 1.87 GHz; 1.60 GHz; 1.33 GHz |
| Memory Standard | DDR3-2400/PC3-19200; DDR3-2133/PC3-17000; DDR3-1866/PC3-15000; DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Memory Technology | DDR3 SDRAM |
| model | A88XM GAMING |
| Network Controller | Killer Gaming E2205 |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Number of SATA Interfaces | 8 |
| Number of Total Expansion Slots | 4 |
| Onboard Audio Header | Yes |
| Onboard Serial Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | A88XM GAMING Desktop Motherboard; Door-hanger; 1 x Slick Gaming Case Badge; 1 x Stylish Gaming I/O Panel |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | ATX12V |
| Processor Socket | Socket FM2+ |
| Processor Supported | A-Series; Athlon X2; Athlon X4 |
| PS/2 Port | Yes |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC1150 |
| Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 8 |
| Total Number of PCI Express Slots | 4 |
| Total Number of USB Ports | 6 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$135.99/each
