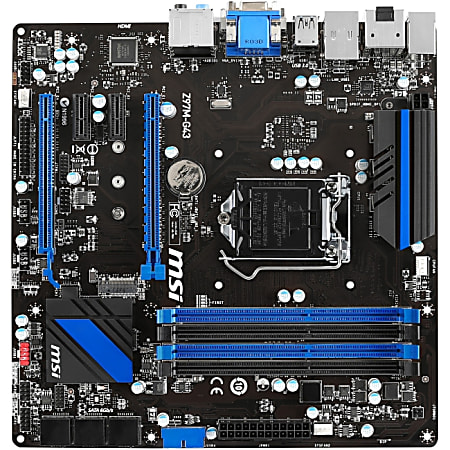

MSI Z97M-G43 Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150
1 / 1
$135.99/each
Description
MSI motherboard features one or more PCI Express 3.0 slots, perfectly aligned and with enough space for an optimal airflow when using multiple graphics cards. That way, you will never have to worry about an overheating PC, while you are enjoying the best graphics jumping off from your monitor when running a AMD CrossFire gaming setup.
Specifications
Product Specifications
Item # | 975748 |
Manufacturer # | Z97M-G43 |
64-bit Processing | Yes |
Audio Channels | 7.1 |
Audio Codec | Realtek ALC892 |
BIOS Features | DMI support, MSI ClickBIOS 4 |
brand name | MSI |
Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.) |
Chipset Manufacturer | Intel |
Chipset Model | Z97 Express |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
controller type | Serial ATA/600 |
depth | 9.6 in. |
DisplayPort | Yes |
DVI | Yes |
form factor | Micro ATX |
Gigabit Ethernet | Yes |
Graphics Controller Manufacturer | Intel |
Graphics Controller Memory | 1.72 GB |
Graphics Memory Accessibility | Shared |
Graphics Memory Technology | DDR3 SDRAM |
Hardware Features | Intel Extreme Memory Profile (XMP) support, Super Charger, Intel Smart Response Technology, AMD CrossFireX technology support, Intel Rapid Start Technology, Intel Smart Connect Technology, MSI Military Class IV, OC Genie 4, MSI Fast Boot, Clear CMOS Button, MSI Guard-Pro |
HDMI | Yes |
Internal Interfaces | 6 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header; 1 x serial - header; 1 x parallel - header |
manufacturer | MSI |
Max Processors Qty | 1 |
Max Size | 32 GB |
Maximum Memory | 32 GB |
Memory Form Factor | DIMM |
Memory Speed Supported | 3.20 GHz (O.C.); 3.10 GHz (O.C.); 3 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
Memory Standard | DDR3-3200/PC3-25600 (O.C.); DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
Memory Technology | DDR3 SDRAM |
model | Z97M-G43 |
Multi GPU Supported | CrossFireX |
Network Controller | Realtek RTL8111G |
Number of M.2 Interfaces | 1 |
Number of Memory Slots | 4 |
Number of PCI Express x1 Slots | 2 |
Number of PCI Express x16 Slots | 2 |
Number of SATA Interfaces | 6 |
Number of Total Expansion Slots | 4 |
Onboard Audio Header | Yes |
Onboard Parallel Header | Yes |
Onboard Serial Header | Yes |
Onboard Video | CPU Dependent Video |
PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 1 DVI out; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 6 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 2 USB 2.0; 4 USB 3.0; 1 VGA 15-pin D-sub |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
Power Supply Supported | ATX12V |
Processor Socket | LGA1150 Socket |
Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
PS/2 Port | Yes |
RAID Features | Intel Smart Response Technology |
RAID Levels | 0; 1; 5; 1+0 |
RAID Supported | Yes |
Registered or Buffered | Unbuffered |
Sound Controller Manufacturer | Realtek |
Sound Controller Model | ALC892 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
Supported RAM Integrity Check | Non-ECC |
Total Number of Onboard USB Ports | 8 |
Total Number of PCI Express Slots | 4 |
Total Number of USB Ports | 6 |
Total Processor Supported | 1 |
warranty length | 3-year limited |
weight | 3 lb |
$135.99/each
