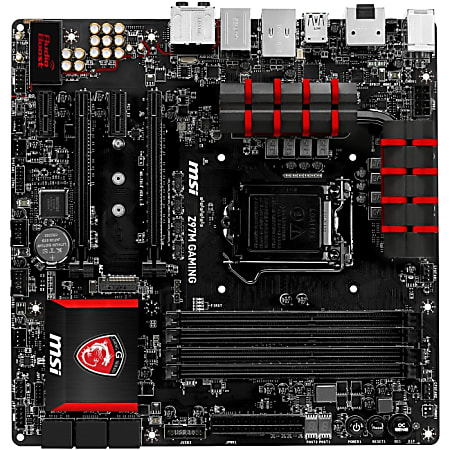

Sign up for MSI Z97M GAMING Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150
1 / 1
$176.99/each
Description
Get ready for ear-drum shattering sound, with MSI Audio Boost 2! With Audio Boost 2 MSI is delivering the high audio quality with the use of Creative Sound Blaster Cinema 2 so you can enjoy crystal clear sound and music through 8-channel HD audio.With traditional onboard audio the signal is distorted by electromagnetic signals from the rest of the PCB. Audio Boost 2 acts like a dedicated sound card by physically isolating the audio circuitry which is separated by a red LED path. Less interference gives you a more clear audio signal.Thanks to Creative Sound Blaster Cinema 2, you're getting amazing surround sound with just stereo headphones or speakers. Creative Sound Blaster Cinema 2 enables you to clearly hear specific sounds in gaming environments. Hear your enemies perfectly, make your ears a decisive tool to finish on top.
Specifications
Product Specifications
| Item # | 975946 |
| Manufacturer # | Z97M GAMING |
| 64-bit Processing | Yes |
| Audio Channels | 7.1 |
| Audio Codec | Realtek ALC1150 |
| BIOS Features | DMI support, MSI ClickBIOS 4 |
| brand name | MSI |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2600 MHz (O.C.), 2400 MHz (O.C.), 2200 MHz (O.C.), 2133 MHz (O.C.), 2000 MHz (O.C.), 1866 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.) |
| Buttons & Keys | GO2BIOS; Power; Reset; OC Genie; CMOS Clear |
| Chipset Manufacturer | Intel |
| Chipset Model | Z97 Express |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| controller type | Serial ATA/600 |
| depth | 9.6 in. |
| DisplayPort | Yes |
| eSATA | Yes |
| form factor | Micro ATX |
| Gigabit Ethernet | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Memory | 1.72 GB |
| Graphics Memory Accessibility | Shared |
| Graphics Memory Technology | DDR3 SDRAM |
| Hardware Features | Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, Hi-c CAP, Intel Smart Response Technology, Super Ferrite Choke (SFC), AMD CrossFireX technology support, Onboard Button, Intel Rapid Start Technology, Intel Smart Connect Technology, MSI Military Class IV, OC Genie 4, Clear CMOS Button, MSI Gaming Device Port, MSI Audio Boost 2, MSI Guard-Pro, dual headphone amplifiers, Debug LED |
| HDMI | Yes |
| Internal Interfaces | 4 x USB 2.0 - header; 2 x USB 3.0 - header; 1 x audio - header |
| manufacturer | MSI |
| Max Processors Qty | 1 |
| Max Size | 32 GB |
| Maximum Memory | 32 GB |
| Memory Form Factor | DIMM |
| Memory Speed Supported | 3.20 GHz (O.C.); 3.10 GHz (O.C.); 3 GHz (O.C.); 2.80 GHz (O.C.); 2.67 GHz (O.C.); 2.60 GHz (O.C.); 2.40 GHz (O.C.); 2.20 GHz (O.C.); 2.13 GHz (O.C.); 2 GHz (O.C.); 1.87 GHz (O.C.); 1.60 GHz; 1.33 GHz; 1.07 GHz |
| Memory Standard | DDR3-3200/PC3-25600 (O.C.); DDR3-3100/PC3-24800 (O.C.); DDR3-3000/PC3-24000 (O.C.); DDR3-2800/PC3-22400 (O.C.); DDR3-2666/PC3-21330 (O.C.); DDR3-2600/PC3-20800 (O.C.); DDR3-2400/PC3-19200 (O.C.); DDR3-2200/PC3-17600 (O.C.); DDR3-2133/PC3-17000 (O.C.); DDR3-2000/PC3-16000 (O.C.); DDR3-1866/PC3-15000 (O.C.); DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Technology | DDR3 SDRAM |
| model | Z97M GAMING |
| Multi GPU Supported | CrossFireX; SLI |
| Network Controller | Killer Gaming E2205 |
| Number of M.2 Interfaces | 1 |
| Number of Memory Slots | 4 |
| Number of PCI Express x1 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 4 |
| Onboard Audio Header | Yes |
| Onboard LEDs Header | Yes |
| Onboard Video | CPU Dependent Video |
| package contents | Z97M GAMING Desktop Motherboard; Cables; Connectors; Door-hanger; Case Badge; Gaming I/O Panel |
| PCI Express Standard | PCI Express 3.0; PCI Express 2.0 |
| ports | 1 audio line in; 1 audio line out; 1 DisplayPort out; 2 eSATA; 1 Ethernet (RJ-45); 1 HDMI out; 1 microphone; 4 onboard USB 2.0; 2 onboard USB 3.0; 1 PS/2; 1 S/PDIF; 1 S/PDIF out; 2 USB 2.0; 6 USB 3.0 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Power Supply Supported | ATX12V |
| Processor Socket | LGA1150 Socket |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron |
| PS/2 Port | Yes |
| RAID Features | Intel Smart Response Technology |
| RAID Levels | 0; 1; 5; 1+0 |
| RAID Supported | Yes |
| Registered or Buffered | Unbuffered |
| Sound Controller Manufacturer | Realtek |
| Sound Controller Model | ALC1150 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA, 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5; ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin external SATA - 2 devices |
| Supported RAM Integrity Check | Non-ECC |
| Total Number of Onboard USB Ports | 6 |
| Total Number of PCI Express Slots | 4 |
| Total Number of USB Ports | 8 |
| Total Processor Supported | 1 |
| warranty length | 3-year limited |
$176.99/each
