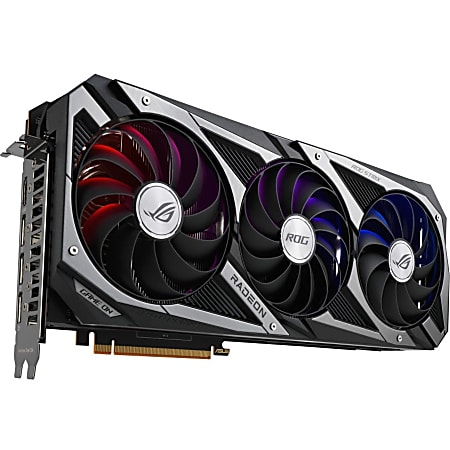

Asus ROG AMD Radeon RX 6800 Graphic Card - 16 GB GDDR6 - 1.98 GHz Game Clock - 2.19 GHz Boost Clock - 256 bit Bus Width - PCI Express 4.0 - DisplayPort - HDMI

TAKE FLIGHT

The ROG Strix Radeon™ RX 6800 merges an industry-leading cooling solution with high-end power performance and additional creature comforts. Beneath the surface, a massive heatsink is cooled by a trio of Axial-tech fans that utilize a new rotation scheme and specialized roles for central and auxiliary fans. At the heart of the beast, top-shelf capacitors, chokes, and MOSFETs effortlessly deliver hundreds of watts at a millisecond's notice. A host of convenient features, including a Dual BIOS switch, 0dB mode, FanConnect PWM headers, and metal backplate, make this frame-crunching colossus an ideal choice for DIY builders.

BIGGER, BETTER COOLING

This generation, our Axial-tech fan design has matured with an increased blade count on all three fans: 13 on the center fan and 11 on the auxiliary fans. The barrier rings on the side fans have been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan's extra blades and full-height ring provide boosted static pressure to blast air directly onto the GPU heat spreader. The fan design growth is specifically optimized for a massive new heatsink that features more fins and surface area than previous iterations.

MAXCONTACT

To get heat up off the die and into the heatsink array, we've engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.

2.9-SLOT DESIGN

The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card's large, 2.9-slot footprint

FIERCE SHROUD

A striking shroud with metal accents mirrors the design aesthetic of ROG and ROG Strix motherboards. Mixing surface textures and materials make a statement when vertically mounted and lit by chassis LEDs. For those who prefer a sleeker, more subtle look, the greyscale colorway allows it to seamlessly blend into the build.

ARMORED UNDERSIDE

The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual Bios switch allows customization of the card's default performance profile without software.

GNARLY GRILL

An impressive addressable RGB element on the front of the card can be customized with Armoury Crate to create a uniform look along with other ROG components. To fulfill the power demands of the Radeon RX 6800, two 8-pin power connectors are present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue. The Strix's reinforced metal frame is also visible here, adding a literal layer of durability.
