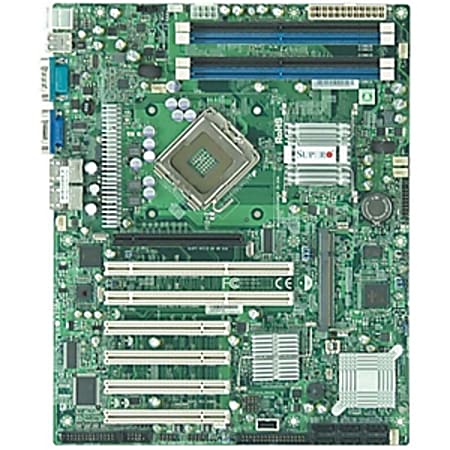

Sign up for Supermicro X7SBA Desktop Motherboard - Intel Chipset - Socket T LGA-775 - 1 x Retail Pack
1 / 1
$250.99/each
Description
X7SBA Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
Specifications
Product Specifications
| Item # | 990279 |
| Manufacturer # | MBD-X7SBA-O |
| Additional Connectors (Optional) | 5 x USB 2.0 |
| Number of SATA Interfaces | 6 |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, Watch Dog Timer |
| Onboard LEDs Header | Yes |
| Total Number of Onboard USB Ports | 2 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Memory Speed Supported | 800 MHz; 667 MHz |
| Processor Supported | Xeon; Core 2 Quad; Core 2 Duo |
| Max Bus Speed | 1333 MHz |
| BIOS Features | ACPI 1.0 support, DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support, IPMI support |
| Additional Information | RoHS Compliant; Dual Channel memory supported; Chipsets:Intel 3210 chipset; ICH9R; PXH/V; BIOS Features:16Mb Flash EEPROM with Phoenix BIOS; Plug and Play (PnP); DMI 2.3 support; PCI 2.2; ACPI 1.0/2.0; USB Keyboard Support; SMBIOS 2.3; Hardware Monitoring:Monitors for CPU Cores +1.8V, +3.3V, +5V, ±12V, 3.3V Standby, 5V Standby, VBAT; CPU 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V; Adjustable CPU clock frequency ratio; Total of six 4-pin fan headers; PECI |
| Compatible Processors | Core 2 Duo, Dual-Core Xeon 3000 series, Core 2 Quad, Pentium Dual Core, Celeron 400 sequence, Quad-Core Xeon 3200 series, Dual-Core Xeon 3100 series, Quad-Core Xeon 3300 series |
| Sleep / Wake Up | Keyboard wake up, wake on modem (WOM), wake on LAN (WOL), wake on ring (WOR) |
| quantity | 1 |
| Total Number of USB Ports | 2 |
| BIOS Type | Phoenix |
| Serial Port | Yes |
| Internal Interfaces | 1 x floppy |
| Registered or Buffered | Unbuffered |
| Graphics Controller Manufacturer | XGI |
| package contents | X7SBA Desktop Board; Motherboard Manual for X7SBA; ATX Floppy Cable; SATA Cable (2Ft.); Version 1.0 (or newer) CD; I/O Shield for X7SBA |
| Number of Memory Slots | 4 |
| Storage Interfaces | Intel ICH9R : SATA-300 -connectors: 6 x 7pin Serial ATA - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| depth | 9.6 in |
| Product Name | X7SBA Desktop Motherboard |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 1 |
| manufacturer | Supermicro Computer, Inc |
| Front Side Bus | 1333 MHz; 1066 MHz; 800 MHz |
| Bus Clock | 800 MHz, 667 MHz |
| VGA | Yes |
| Max Processors Qty | 1 |
| brand name | Supermicro |
| Maximum Memory | 8 GB |
| Max Size | 8 GB |
| Dedicated Video Memory | 32 MB |
| controller type | Floppy Controller; Serial ATA/300 |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, CPU core voltage |
| Gigabit Ethernet | Yes |
| Network Controller | Intel 82573V / 82573L |
| Processor Technology | Enhanced SpeedStep Technology |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 2 |
| Graphics Controller | XGI Volari Z9s |
| Package Type | Retail |
| Memory Standard | DDR2-800/PC2-6400; DDR2-667/PC2-5300 |
| Number of Total Expansion Slots | 7 |
| Processor Socket | LGA775 Socket |
| Chipset Model | 3210 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | Z9s |
| Memory Technology | DDR2 SDRAM |
| form factor | Atx |
| Graphics Controller Memory | 32 MB |
| Onboard Video | On-board Video Chipset |
| model name | X7SBA |
| Number of PCI Slots | 4 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI-X Slots | 2 |
