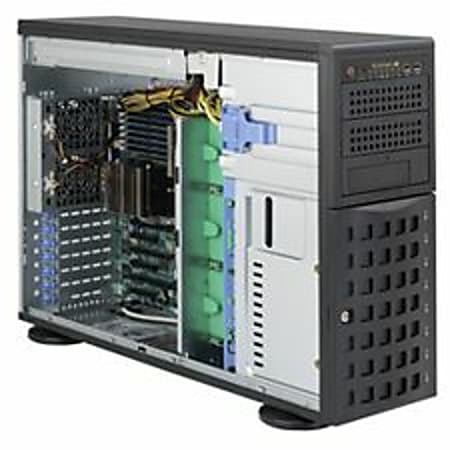

Supermicro A+ Server 4022G-6F Barebone System - 4U Tower - AMD - Socket G34 LGA-1944 - 2 x Processor Support - Black Item # 324736
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
324736
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The control panel on the A+ Server 4022G-6F provides you with system monitoring and control. LEDs indicate system power, HDD activity, network activity, system overheat and power supply failure. A main power button and a system reset button are also included.The chassis has an innovative cooling design that includes hot-plug system cooling fans located in the middle section of the chassis as well as hot-plug exhaust fans located at the rear of the chassis. An air shroud channels the air?ow from the system fans to efficiently cool the processor area of the system.An on-chip SATA controller provides a 3 Gb/s SATA subsystem, which is RAID 0, 1, and 10 supported. The SATA drives are hot-swappable units.Other onboard features that promote system health include onboard voltage monitors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU overheat sensors, virus protection and BIOS rescue.
Product Details
| Item # | 324736 |
| Manufacturer # | 2913544 |
| 80 PLUS Certification | 80 PLUS Platinum |
| brand name | SUPERMICRO |
| Chipset Manufacturer | AMD |
| color | black |
| controller type | Serial ATA; Serial Attached SCSI (SAS) |
| depth | 25.5 in. |
| Ethernet Ports | 2 x Gigabit Ethernet |
| form factor | Tower |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200eW |
| Graphics Memory Capacity | 16 MB |
| Graphics Memory Technology | DDR2 SDRAM |
| height | 17.2 in. |
| Input Voltage | 110 V AC; 220 V AC |
| manufacturer | Supermicro Computer, Inc |
| Maximum Memory | 256 GB |
| Maximum Power Supply Wattage | 920 W |
| Memory Standard | DDR3-1333/PC3-10600 |
| Memory Technology | DDR3 SDRAM |
| model | 4022G-6F |
| Number of 3.5" Bays | 8 |
| Number of PCI Express x16 Slots | 3 |
| Number of PCI Express x8 Slots | 1 |
| Number of Power Supplies Installed | 1 |
| Number of Processors Supported | 2 |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Slots | 4 |
| Number of Total Memory Slots | 16 |
| ports | 1 10/100/1000 Ethernet (RJ-45); 8 USB 2.0; 1 VGA 15-pin D-sub |
| Processor Socket | Socket G34 LGA-1944 |
| Processor Supported | Opteron |
| Product Condition | new |
| Product Line | A+ Server |
| Rack Height | 4U |
| RAID Levels | 0, 1, 1+0, 5 |
| RAID Supported | Yes |
| RAM Supported | 512 GB registered - ECC ¦ 128 GB unbuffered - ECC ¦ 128 GB unbuffered - non-ECC |
| Storage Controller Name | LSISAS2008 |
| Total Number of USB Ports | 8 |
| warranty length | 3-year limited |
| Weight (Approximate) | 58 lb |
| What's Included | A+ Server 4022G-6F Barebone System; 1 x Super H8DG6-F Motherboard; 1 x 4U SC745TQ-920B Chassis (Black); 1 x SAS / SATA Hard Drive Backplane with AMI MG9072 Chip; 1 x Front Bezel Filter; 2 x IPASS to 4 SATA 64/54/44/34cm W/ 64cm SB; 1 x 6" Split Converter Cable; 1 x Power Cord; 3 x 5000 RPM Hot-swap PWM Cooling Fan; 2 x 5000 RPM Hot-swap Rear Exhaust PWM Fan; 8 x Black hot-swap 3.5" HDD trays; 1 x 920W high-efficiency (94%+) power supply w/ PMBus; optional redundant power upgrade |
| width | 7 in. |
