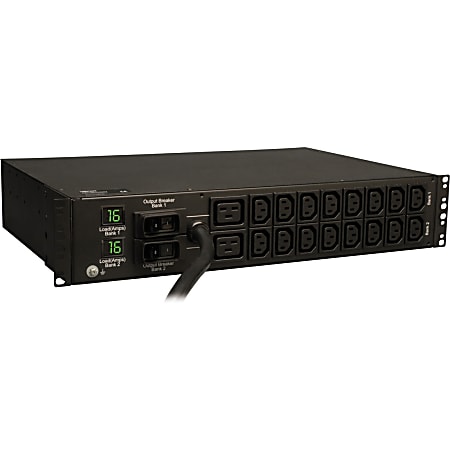

Tripp Lite PDU Metered 230V 32A 7.3kW 16 C13; 2 C19 IEC-309 Horizontal 2URM Item # 581479
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite Metered Power Distribution Units / PDU systems continuously report output load level in amps to help network managers prevent overloads and plan for future growth. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. Highly reliable design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
|brand name||Tripp Lite|
|Frequency Provided||50/60 Hz|
|Input Connectors||1 x power IEC 60309 32A|
|Input Voltage||230 V AC|
|Output Receptacles||2 x IEC 60320 C19; 16 x IEC 60320 C13|
|Output Voltage||230 V AC|
|Power Rating (Watt)||7300 W|
|protection type||Overload Protection|
|warranty length||2-year limited|
|Weight (Approximate)||13.70 lb|
|What's Included||Metered PDUMH32HV 18-Outlets 7.3kW PDU; Mounting brackets; Plug Retention Brackets; User Manual|
|Show More ▾|
Efficient Metered Power Distribution for Network Equipment Racks
- Provide 230V power for up to 18 devices
- Simplify rack setups with organized power distribution
With a rugged all-metal housing, the PDUMH32HV is well-equipped for power distribution in rack enclosures and network closets. It provides 230V power to 18 total outlets (16 x C13, 2 x C19) in two separately breakered and metered 16A load banks. This PDU has an IEC-309 32A Blue (2P+E) plug with a 12 ft. power cord for placement flexibility. The front-panel has a grounding lug.
Digital Load Meters for Real-Time Visual Monitoring
Two load meters provide the real-time load level (in amps) of connected equipment in each output load bank. The meters help ensure that the PDU is used at maximum capacity without danger of overload. If the current drawn by the equipment connected to the PDU ever exceeds the maximum rating, a built-in circuit breaker will trip to prevent possible damage to your equipment.
The PDUMH32HV has removable mounting flanges that support 2U (horizontal) mounting in 2- and 4-post racks. It’s also suitable for wall-mounting and under-counter mounting. The housing is reversible to face the front or back of the rack.
2-Year Warranty and Environmentally Responsible Design
The PDUMH32HV comes with a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Single-phase metered PDU distributes 230V power in high-density IT environments
- 7.4kW output capacity
- Digital meters enable monitoring of total PDU load
- Rugged all-metal reversible housing with 18 outlets (16 x C13, 2 x C19)
- IEC-309 32A Blue (2P+E) plug with 12 ft. power cord
- Supports 2U, wall-mount and under-counter installations
- 2-year warranty
- 2U Metered PDU
- Cord Retention Brackets
- Mounting Brackets
- Owner’s Manual
