D-Link® DES-1008E 8-Port 10/100 Desktop Switch OfficeMax # 22361506

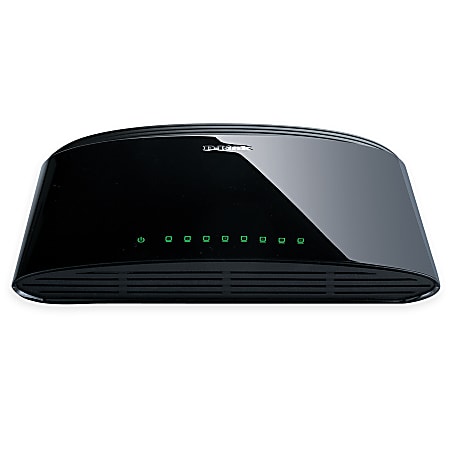

D-Link® DES-1008E 8-Port 10/100 Desktop Switch
Click to View Gallery

4.3 Stars 5 1 4.3 3 Reviews

    Related Items

      Availability Price Quantity
    Ativa Cat 6 Network Cable 50 Ativa® Cat 6 Network Cable, 50', Blue
    Item # 833330
    		 Limited Availability $35.69 /each Qty.

    Description

    Grow your wired network

    • Connect more computers and devices to your network  Desktop switch lets you expand your wired network by adding computers, printers, storage devices and more.
    • Provides speeds of up to 200 Mbps per port (full-duplex).
    • Compact size to fit anywhere in your home or office.
    • Easy, plug-and-play installation.

    Back to Menu

    Product Details

    Item # 547197
    Manufacturer # DES-1008E
    automatic speed sensing yes
    brand name D-Link
    cable included no
    depth 3-2/7 in.
    dimensions 1.42"H x 4.93"W x 3.3"D
    form factor Wall Mountable; Desktop
    height 1-3/7 in.
    Input Voltage 5 V DC
    internal/external External
    Layer Supported 2
    Manageable No
    manufacturer D-Link Systems, Inc.
    maximum data transfer rate 200
    model DES-1008E
    Network Technology 10/100Base-TX
    plug and play yes
    Port/Expansion Slot Details 8 x Fast Ethernet Network
    ports 8 10/100 Ethernet (RJ-45); 1 management; 1 stack
    power source AC adapter
    Total Number of Network Ports 8
    warranty length 3-year limited
    What's Included DES-1008E Fast Ethernet Switch; Warranty Card; Quick Install Guide; Wall Mount Kit; Power adapter
    width 5 in.

    Back to Menu

    D-Link® DES-1008E 8-Port 10/100 Desktop Switch is rated 4.3 out of 5 by 3.
    Rated 4 out of 5 by from It did what is was designed to do. I needed to connect a number of laptop computers in an office setting by adding on to the existing network and this unit did just what it was supposed to do.
    Date published: 2015-11-16
    Rated 4 out of 5 by from As expected This is a 10/100 switch and it functions as it is supposed to.
    Date published: 2013-09-07
    • y_2018, m_12, d_16, h_15
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.9
    • cp_1, bvpage1
    • co_hasreviews, tv_1, tr_2
    • loc_, sid_547197, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_officedepot

    Back to Menu

    Back to Menu

    Back To Top

    From the Manufacturer|Powered by  Webcollage

    Thank You Is the information in this section helpful? Yes / No

    Description

    • Description

      The 8-Port Desktop Switch lets you network up to eight devices at speeds up to 200Mbps at full-duplex capability and is compacted enough to be placed virtually anywhere in your home or office.

    • AUTO-SENSING 10/100 PORTS

      The DES-1008E uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

    • AUTO MDI/MDIX CROSSOVER

      All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

    • FLOW CONTROL FOR SECURE TRANSMISSION

      802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices.

    Features

    • Eight 10/100 Mbps Switched Ports
    • Up to 100 Mbps of Dedicated Bandwidth per Port and up to 200 Mbps Bandwidth in Full-Duplex Mode1
    • Auto MDI/MDI-X Crossover for all Ports
    • IEEE 802.3x Flow Control
    • Plug & Play Installation
    • Supports MAC Address Learning
    • Wall Mountable
    • 24/7 Basic Installation Support
    • Limited Lifetime Warranty

    Specification

    Technical Specifications
    Key Features
    • Inexpensive Fast Ethernet solution for home/SOHO
    • 8 10/100 Mbps Fast Ethernet ports
    • Auto MDI/MDIX crossover for all ports
    • Store-and-forward switching scheme
    • Full/half-duplex for Ethernet/Fast Ethernet speeds
    • IEEE 802.3x Flow control
    • Plug-and-play installation
    • RoHS compliant

    Switching Fabric
    • 1.6 Gbps switching fabric

    Standards
    • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
    • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
    • ANSI/IEEE 802.3 Nway autonegotiation
    • IEEE 802.3x Flow control
    • IEEE 802.3az Energy Efficient Ethernet (EEE)

    Protocol
    • CSMA/CD

    Data Transfer Rates
    • Ethernet: 10 Mbps (half duplex) 20 Mbps (full duplex)
    • Fast Ethernet: 100 Mbps (half duplex) 200 Mbps (full duplex)

    Topology
    • Star

    Media Interface Exchange
    • Auto MDI/MDIX adjustment for all ports

    Network Cables
    • 10BASE-T: UTP CAT 3/4/5/5e (100 m max.) EIA/TIA-586 100-ohm STP (100 m max.)
    • 100BASE-TX: UTP CAT 5/5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)

    Led Indicators
    • Per port: Link/Activity
    • Per device: Power

    Transmission Method
    • Store-and-forward

    Mac Address Table
    • 2K entries per device

    Mac Address Learning
    • Automatic update

    Packet Filtering/Forwarding Rates
    • Ethernet: 14,880 pps per port
    • Fast Ethernet: 148,800 pps per port

    Ram Buffer
    • 96 KBytes per device

    DC Input
    • External 5V/.55A power adapter

    Power Consumption
    • Power on (Standby): DC input:1.78 watts AC input:2.19 watts
    • Maximum: DC input: 3.3 watts AC input: 5.2 watts

    Heat Dissipation
    • Power on (Standby): AC input 4.774 BTU/h
    • Maximum: AC input 17.732 BTU/h

    Temperature
    • Operating: 0 to 50 °c (32 to 122 °F)
    • Storage: -10 to 70 °c (14 to 158 °F)

    Humidity
    • Operating: 10% to 90% RH Non-Condensing
    • Storage: 5% to 90% RH Non-Condensing

    Device Dimensions (W x D x H)
    • 1.37” x 5.83” x 3.33” (34.7 x 148 x 84.6 mm)

    Certifications
    • FCC class B
    • ICES-003 class B
    • CE class B
    • C-Tick class B
    • VCCI class B
    • cUL
    • CB

    MTBF
    • 2,137,319 hours

    Warranty
    • Limited Lifetime2

    Minimum System Requirements
    • Devices Supporting 802.3 Ethernet or 802.3u Fast Ethernet
    • CAT5 Ethernet Cable
    • Network Interface Card for each computer

    Package Contents
    • 8-Port 10/100 Desktop Switch
    • Power Adapter
    • Wall Mount Kit
    • Quick Install Guide






    All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

    Data Sheet

    1. 1 Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic and network overhead, lower actual data throughtput rate.
    2. 2 Limited Lifetime Warranty available only in the USA and Canada if purchased on or after June 1, 2010.
